electrical fuse box vs circuit breaker is a panel-path choice between sacrificial fuse links and resettable breakers, not a contest over which technology is morally safer. Fuse-based boards clear overcurrent by melting a rated link that must be replaced; breaker boards trip, wait for investigation, and reset when the cause is cleared. The sections below compare after-event behavior, selection inputs, fuse-gear fit cases, breaker defaults, upgrade boundaries, and a modular DIN-rail component route on cnsuton.com.

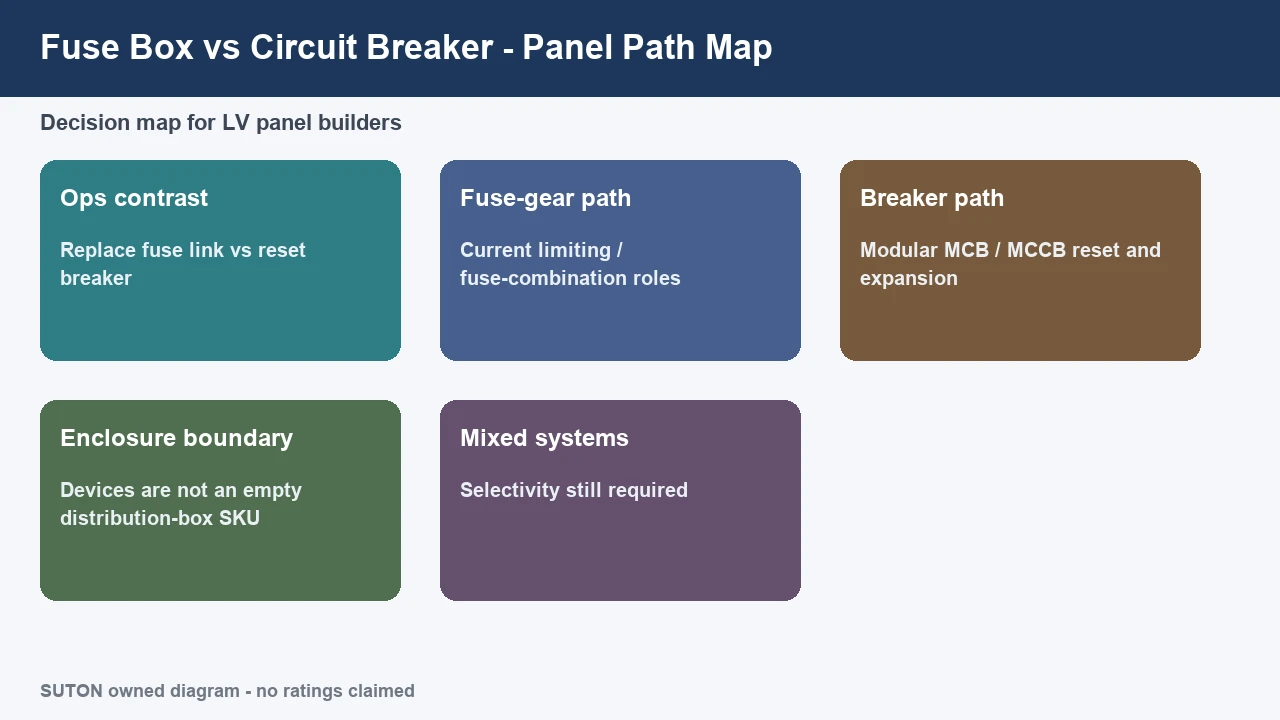

What the Fuse Box vs Circuit Breaker Choice Actually Decides
The choice settles protection technology, reset logistics, and board architecture for a defined duty — not a universal winner. Consumer pages often frame fuse boxes as “old” and breaker panels as “new,” which helps homeowners but hides the real panel-builder question.
That question is which path matches fault duty, maintenance practice, residual strategy, and coordination needs. If a facility still runs a fuse-based board, the comparison does not automatically order a breaker swap. It first asks whether the installed technology is fuse-based, breaker-based, or mixed, and which roles must stay fuse-combination gear.
Assessment depth for legacy boards already lives in the fuse box guide for panel builders. This page stays on path selection.
A useful decision therefore separates three layers:
- Device physics: sacrificial link versus trip/reset mechanism.
- Board operations: spare-link discipline versus reset access and labeling.
- Architecture: fuse-combination feeders, modular DIN-rail branch devices, or a coordinated hybrid.

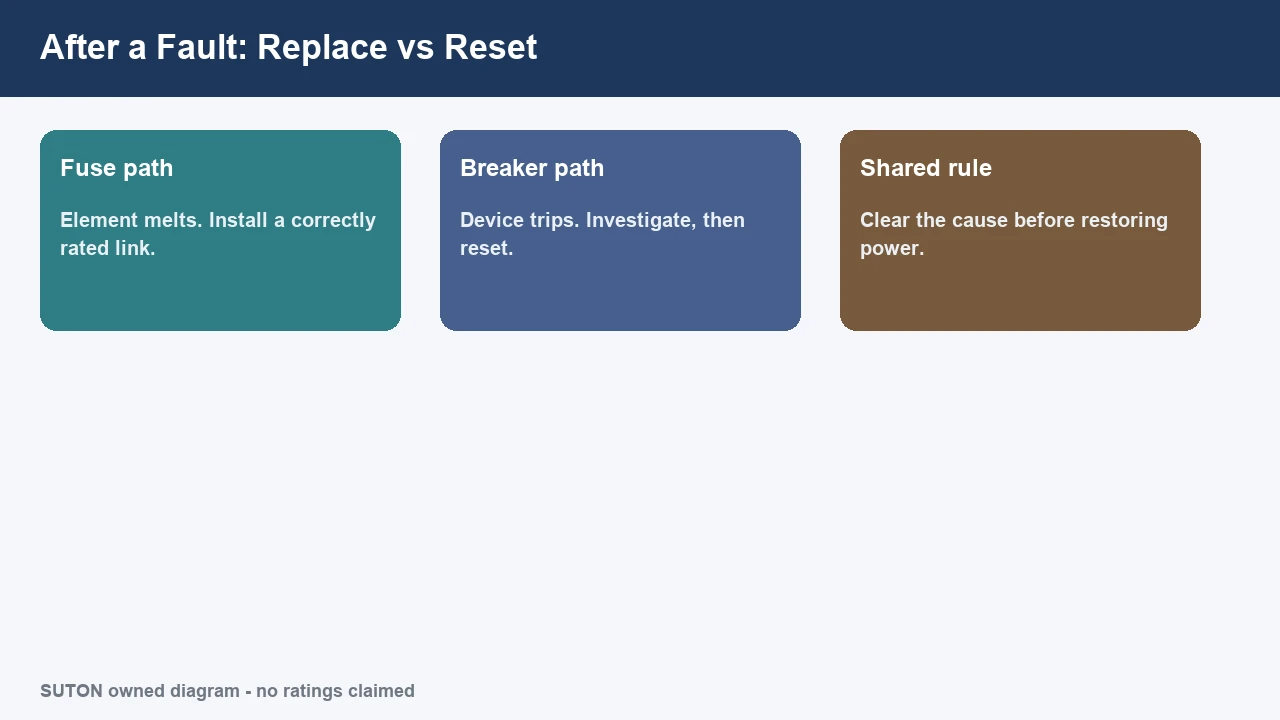

How Each Path Behaves After an Overcurrent Event
Fuses open by sacrificing the link; breakers trip and wait for investigation and reset. That single operational difference drives most procurement and maintenance consequences.
| After-event question | Fuse box / fuse-gear path | Circuit-breaker path |
|---|---|---|
| How does the circuit open? | The rated fuse element melts and stays open | The breaker mechanism trips to an open/trip position |
| How is service restored? | Replace with the correct spare link after investigation | Reset after the cause is understood and cleared |
| What must be stocked? | Correct fuse links and carriers for each duty | Usually no consumable per trip; keep matching breaker types |
| What can go wrong operationally? | Wrong, oversized, or improvised replacement links | Repeated reset without finding the cause |
| What does the operator see? | Missing/open link or fuse-indicator state, depending on gear | Handle or flag position on the device |
Consider a packaging line that nuisances every few weeks. On a breaker board, technicians can reclose quickly after checks. On a fuse board, every event consumes the correct link and depends on spare discipline. Neither path removes the need to find the cause.
Important: Practitioner discussions on Electrician Talk warn that blown fuses invite bad field habits — fitting a larger link or an improvised substitute — which defeats the protection intent. Fuse-gear paths only stay credible when replacement practice is controlled.

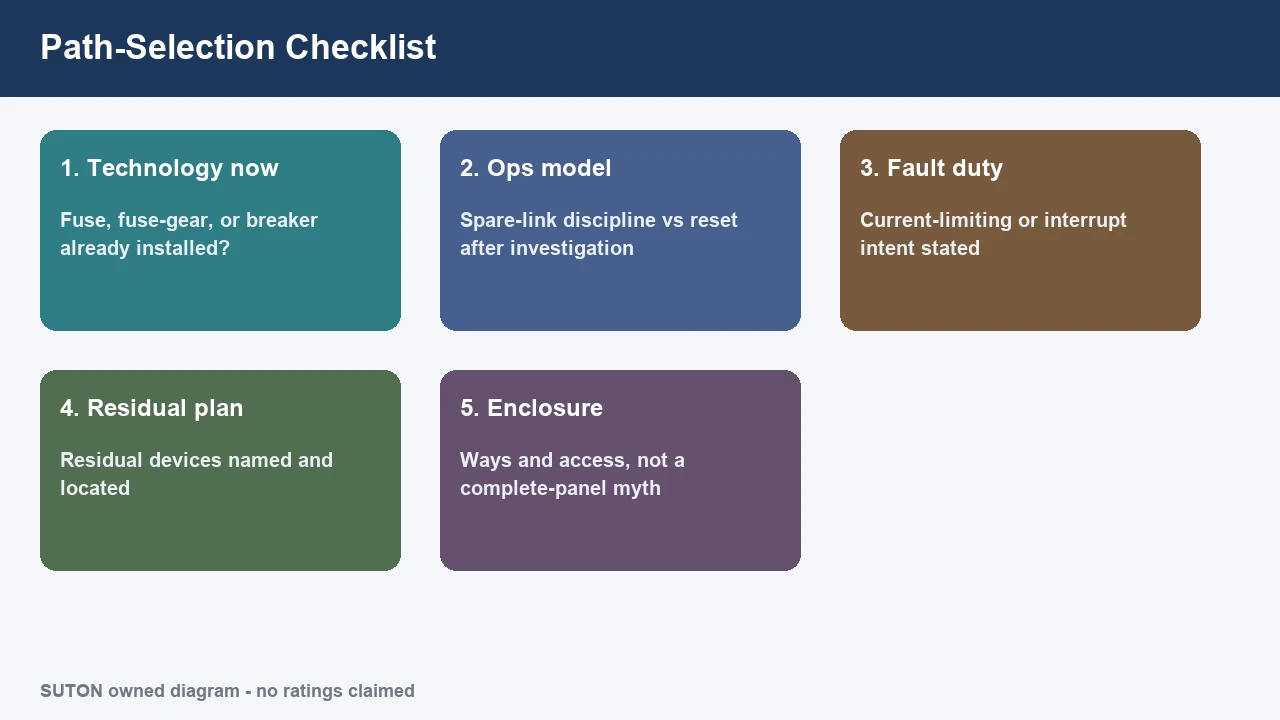

Lock the Duty, Operations, and Protection-Mix Inputs First
Confirm installed technology, fault and load duty, spare or reset practice, residual needs, and coordination method before buying either path. Catalogue preference is a weak substitute for those inputs.
| Input to lock | Why it changes the path | Evidence to collect |
|---|---|---|
| Installed technology identity | “Fuse box” may mean a true fuse board, any old board, or an enclosure only | Photos, markings, device schedule |
| Load growth and circuit count | Expansion pressure favors modular breaker boards | Circuit schedule and spare ways |
| Prospective fault / feeder duty | High-level limiting needs can keep fuse-gear roles alive | Supply data and protection study inputs |
| Reset vs spare logistics | Remote or low-skill sites may prefer reset access; fuse sites need link control | Maintenance procedure and stock list |
| Residual protection / special protection mix | Modular breaker families often package residual options more directly | Required device functions by circuit |
| Coordination style | Fuse-fuse grading differs from breaker time-current setting work | Manufacturer coordination data for the chosen pairing |
A distributor quoting “breakers everywhere” without those inputs often rediscovers retained fuse-combination feeders or residual gaps after award. The reverse error is keeping fuse links on every branch merely because the building once used them.
When a Fuse-Gear Path Still Fits Modern Panels
Prefer fuse-gear when current limiting, fuse-fuse grading, or fuse-combination duties are deliberate design choices. IEC 60269-1 keeps low-voltage fuses as a living product-standard family, and IEC 60947-3 still covers fuse-combination units for distribution and motor circuits within its published voltage scope.
Engineers on Electrician Talk repeatedly return to the same niche: current-limiting fuses can restrain high-level fault current early in the event, while fuse-fuse coordination is often simpler than some breaker grading problems. That does not make fuses automatic winners for every motor or branch circuit; it means the limiting and grading jobs remain real.
Modern fuse-gear is therefore not a museum piece. A fuse switch disconnector or other fuse-combination unit can combine isolation/switching intent with fuse protection in one device class. Where a design retains that role, SUTON’s published ETGLR fuse switch disconnector page is a component route for the fuse-combination conversation — not proof that every board should stay fused.
Use a fuse-gear path when:
- the protection study values fuse limiting on a defined feeder or equipment duty;
- fuse-fuse discrimination is the agreed coordination method;
- operations can stock and replace the exact links;
- the enclosure and carriers are listed/designed for the fuse system in use.
When a Circuit-Breaker Path Is the Better Default
Prefer breakers when reset access, multipole opening, residual packaging, and DIN-rail expansion dominate the project. IEC 60947-2:2024 covers circuit-breakers intended for instructed or skilled persons, while IEC 60898-1 frames MCB-family devices for household and similar installations — two scopes that both support breaker-path thinking without inventing a single global rating.
The same Electrician Talk discussion that defends fuse limiting also lists why most teams standardize on breakers for everyday boards: three-phase devices open together and reduce single-phasing risk from one spent fuse, no consumable is required after each fault, and trip units can add adjustments or options that a fixed link cannot.
For commercial and light-industrial assemblies, a circuit breaker panel also aligns with modular growth. Branch ways, residual devices, and related DIN-rail functions can be added inside a documented modular architecture instead of rebuilding a fuse carrier map for every change. Device-class taxonomy beyond this comparison belongs in the circuit breaker types guide.

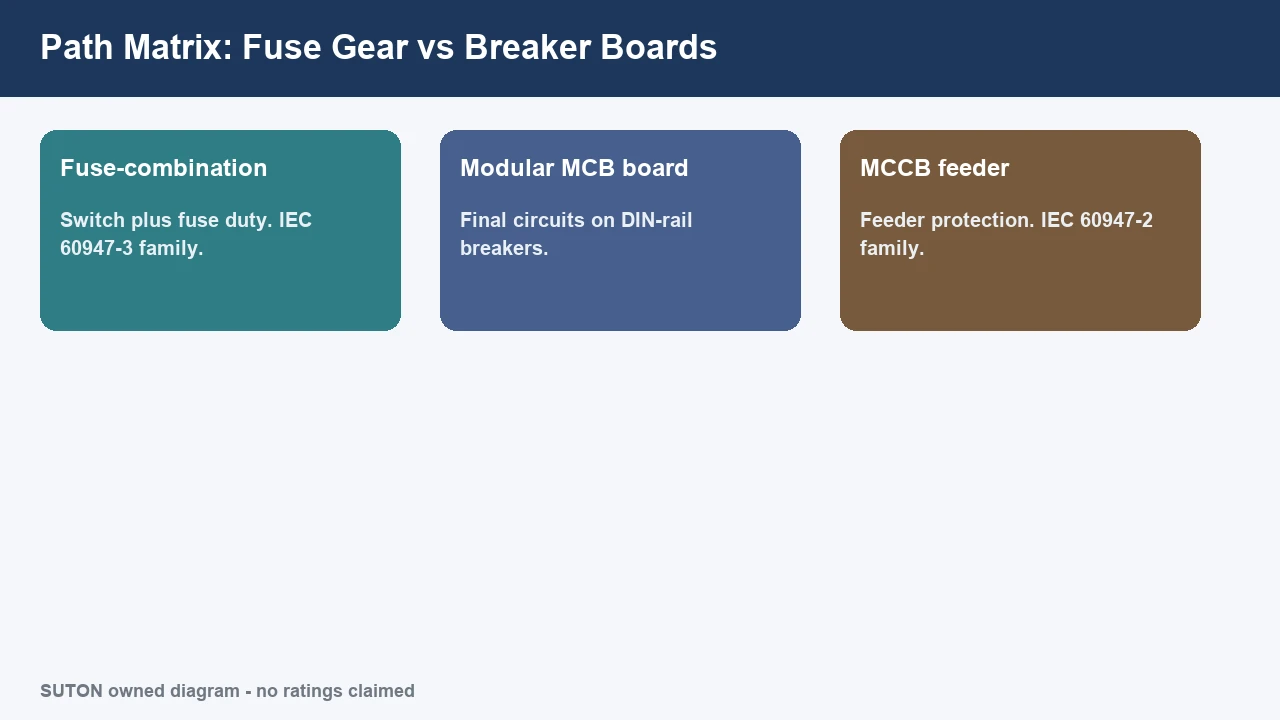

| Decision pressure | Fuse-gear leans ahead when… | Breaker path leans ahead when… |
|---|---|---|
| Fault duty | Early current limiting is a stated need | Ordinary branch/feeder duties dominate |
| Operations | Exact links are controlled and stocked | Teams need fast, repeatable reset access |
| Three-phase integrity | Other measures handle open-phase risk | Multipole opening is required by default |
| Expansion | Fuse roles are stable and few | Ways and functions will grow on DIN rail |
| Protection mix | Separate residual devices are already planned | Integrated modular residual options matter |
Hybrid Designs and Upgrade Boundaries You Should Not Skip
Hybrid designs need coordination evidence; casual fuse-to-breaker swaps inside an unlisted enclosure are not a path. Contractor explainers reviewing upgrades make the same mechanical point panel builders already know: fuse panels and breaker panels differ in bus construction, mounting, and listing intent, so “drop breakers into the old fuse cabinet” is not engineering.
Legitimate hybrids still exist. Upstream fuse limiting with downstream breakers can be a studied combination when manufacturer cascading or coordination data supports the pair. The keyword is studied. A hybrid without let-through and discrimination evidence is only a parts collage.
Upgrade programs should also keep assessment separate from path preference. If the live board is undocumented, overheated, mislabeled, or full of improvised links, send that work through the fuse box assessment guide before arguing about aesthetics or reset convenience.
Boundary checklist:
- do not treat adapter folklore as a listed conversion method;
- do not erase fuse-combination feeders that the protection study still needs;
- do not reset breakers or replace fuses as a substitute for finding the fault cause;
- do not claim a complete assembled panel merely because modular devices are available.
Route Modular DIN-Rail Breakers After You Choose the Breaker Path
Use the modular DIN-rail hub and the DZ47 MCB family to specify breaker-path branch devices without claiming a complete panel. Once the comparison resolves toward a circuit-breaker architecture, component selection should stay inside published device pages rather than inventing an enclosure or switchgear package.
Start at SUTON’s Modular DIN Rail Products hub for the breaker-path device family view. For a conventional miniature circuit breaker candidate, open the DZ47 series miniature circuit breaker page and bind poles, curve, and other published ratings to the actual circuit schedule. Adjacent residual or isolation devices on the same hub can support the protection mix only when those live pages match the required function.
If the design still retains a fuse-combination feeder, keep that conversation on the fuse-gear path and the ETGLR product page rather than forcing every role onto an MCB. The comparison is allowed to end in a mixed bill of materials; it is not allowed to end in unsupported complete-panel claims or improvised conversions.
When published ratings and documents need clarification for a live project, use Contact SUTON with the circuit schedule and protection intent. Public pages do not fix MOQ, lead time, certificate scope, or project approval.
FAQ
What is the difference between a fuse box and a circuit breaker panel?
A fuse box clears overcurrent by melting a sacrificial link that must be replaced, while a circuit breaker panel trips a resettable device that can be closed again after investigation.
Are fuse boxes safer than circuit breakers?
No universal safer ranking is justified. Safety follows listing, condition, correct ratings, and disciplined replacement or reset practice for the chosen path.
Can you replace a fuse with a breaker in the same box?
Not as a casual conversion. Fuse and breaker boards differ in construction and listing intent, so changing technology normally means a designed equipment change, not an adapter shortcut.
When are fuses preferred over breakers?
When the design needs current-limiting behavior, fuse-fuse grading, or a deliberate fuse-combination role, and operations can control exact spare links.
When is a breaker path the better default?
When reset access, multipole opening, modular expansion, and residual packaging matter more than fuse limiting for the circuits involved.
What is a fuse switch disconnector?
It is a modern fuse-combination style device that pairs switching/isolation intent with fuse protection, covered as a device class under the fuse-combination switching standard family rather than as “legacy plug fuses only.”
Does choosing breakers mean fuses are obsolete?
No. Fuse and fuse-combination product standards remain current, and some feeders or equipment duties still specify fuse-gear on purpose.
Where should fuse-box assessment depth go?
Use the live fuse box guide for panel builders for condition evidence and upgrade planning; keep this page for path comparison and modular breaker routing.
