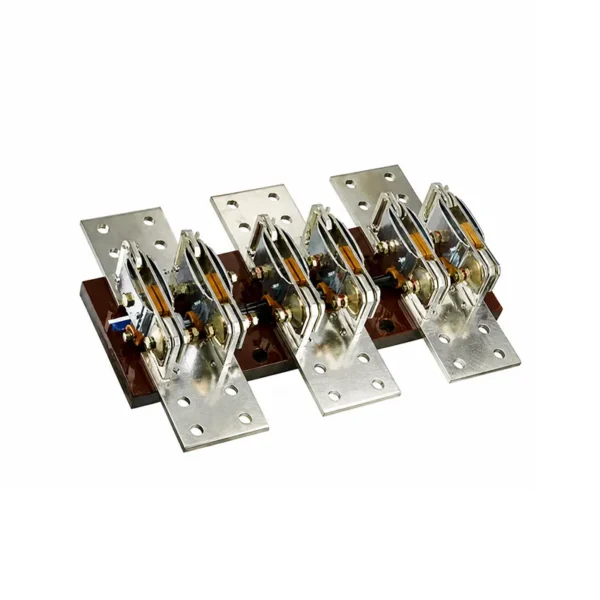

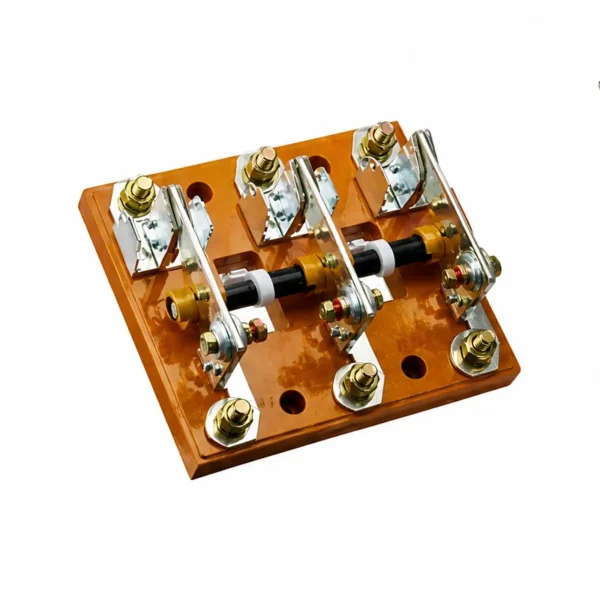

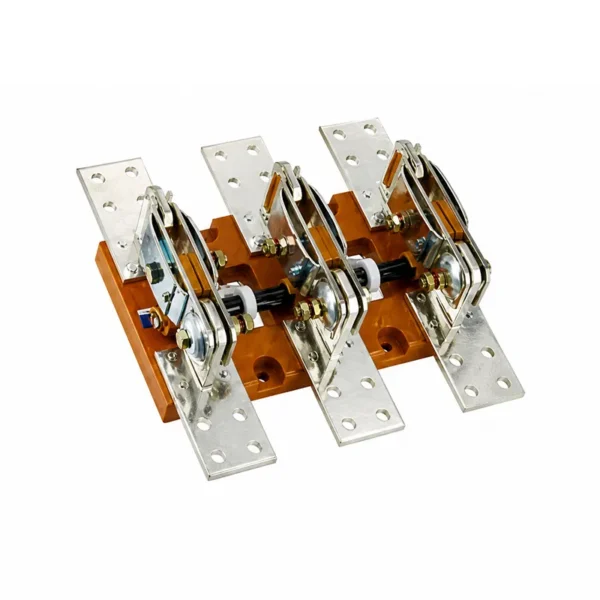

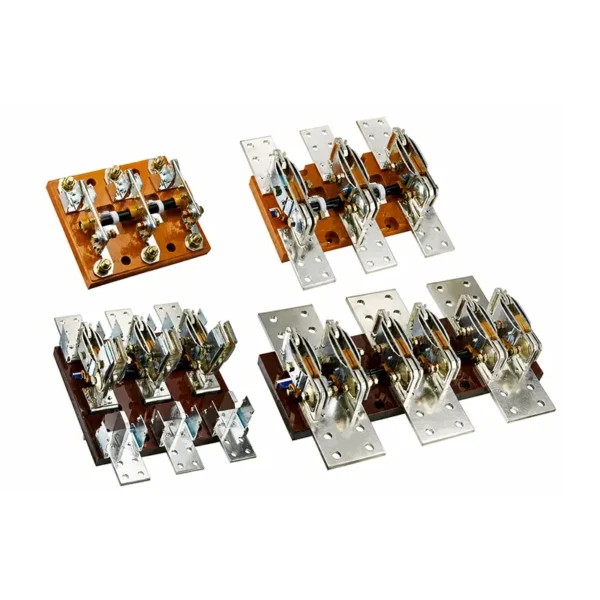

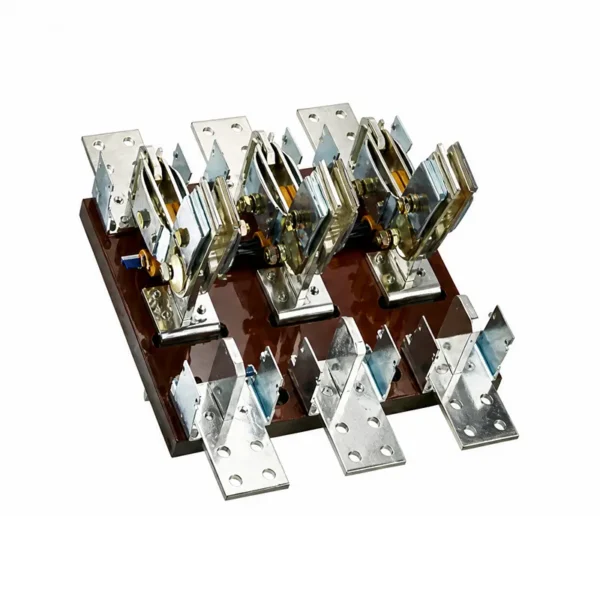

HD(HS) Series Open-Type Knife Switches and Knife-Type Changeover Switches

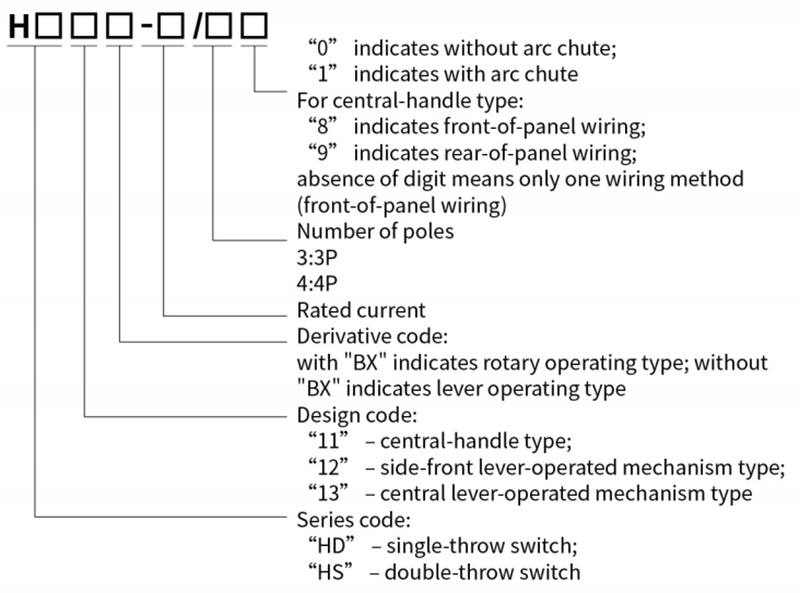

Scope of Application

• The HD series and HS series open-type knife switches and knife-type changeover switches (hereinafter referred to as “switches”) are suitable for AC 50Hz and rated operational voltage up to 690V, rated voltage up to AC 690 V and rated current up to 3000 A. They are used for infrequent manual making and breaking of AC circuits or as isolating switches.
• Central handle type switches are mainly used in power stations and power distribution systems as isolating switches without interrupting current-carrying circuits.
• Central lever-operated mechanism switches are mainly used in switchgear cabinets designed for front operation and rear maintenance, with the operating mechanism installed on the front.
• Side-front lever-operated mechanism switches are mainly used in switchgear cabinets designed for side-front operation and front maintenance, the operating mechanism can be installed on either side of the cabinet.
• Switches equipped with arc chutes can interrupt load currents; other series of knife switches are used only as isolating switches.
• This product complies with IEC 60947-3 and GB/T 14048.3 standards.

Normal Service and Installation Conditions

• Ambient air temperature not higher than +40 °C and not lower than -5°C.
• Installation altitude not exceeding 2000 m.
• Humidity: At a minimum temperature of -40°C, the relative humidity at the site shall not exceed 50%. Higher relative humidity is permitted at lower temperatures (e.g., 90% at 20°C). Appropriate measures shall be taken against occasional condensation caused by temperature variations.
• Pollution degree of the surrounding environment is degree 2.
• The switch shall be installed in a location free from significant vibration, shock vibration and rain/snow exposure. The installation site shall be free from explosive media, and the medium shall contain no gases or dust sufficient to corrode metal or damage insulation.

Main Technical Parameters

Conventional free-air thermal current (A)	100	200	400	600	1000	1500	2000	3000
Rated operational voltage (V)	400/690	400/690	400/690	400/690	400/690	400/690	400	400
Rated operational current (A)	100	200	400	600	1000	1500	2000	3000
Rated insulation voltage (V)	1000	1000	1000	1000	1000	1000	1000	1000
Mechanical endurance (operations)	10000	10000	8000	5000	5000	5000	3000	3000
Electrical endurance (operations)	1000	1000	1000	500	500	500	300	300
1short-time withstand current (kA)	15	15	15	15	30	30	40	40
Operating force (N)	≤ 300	≤ 300	≤ 400	≤ 400	≤ 450	≤ 450	≤ 450	≤ 450

Outline and Mounting Dimensions (mm)

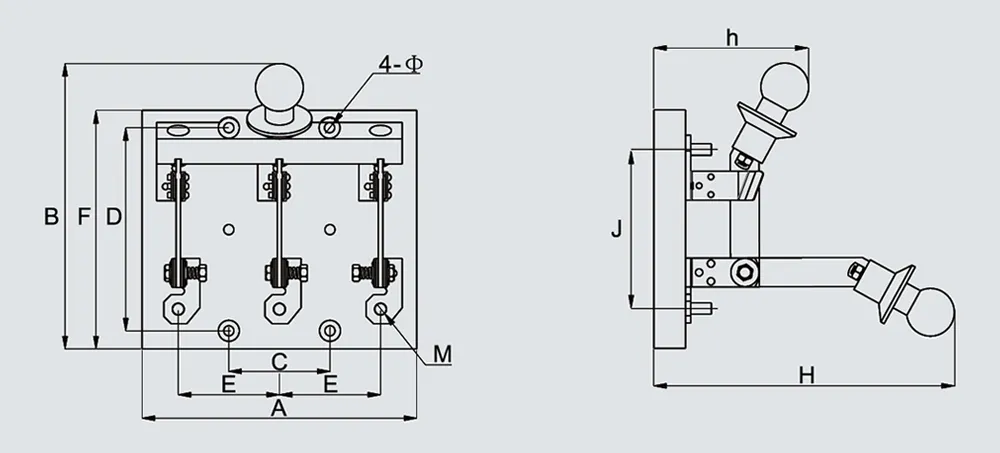

HD11-400/□ 8 and below

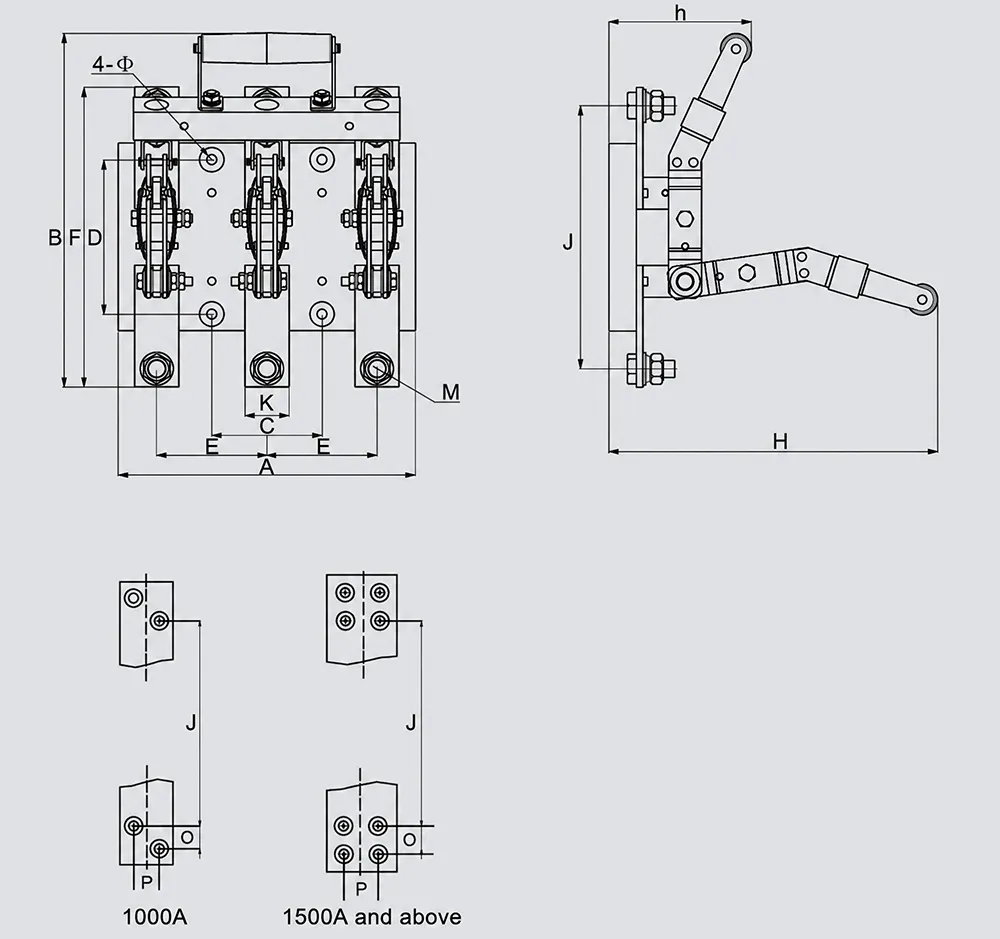

HD11-600/□ 8 and above

Outline and Mounting Dimensions (mm)

Baseplate Machining Mode: Compression Molded (Resin Plate, Magnetic Plate)

Model	Overall Dimensions											Mounting Dimensions
Model	A	B	E	F	H	h	J	K	O	P	M	Φ	C	D
HD11-100/38	140	190	50	160	200	100	110	/	/	/	8	7	50	140
HD11-100/48	192	190	50	160	200	100	110	/	/	/	8	7	100	140
HD11-200/38	190	195	70	160	210	110	110	/	/	/	8	7	70	140
HD11-200/48	270	210	70	160	220	115	110	/	/	/	8	7	140	140
HD11-400/38	210	260	80	210	260	126	146	/	/	/	12	7	80	180
HD11-400/48	300	270	80	210	270	130	146	/	/	/	12	7	160	190
HD11-600/38	270	332	100	272	300	133	239	40	/	/	16	9	100	140
HD11-600/48	340	332	90	272	300	133	239	40	/	/	16	9	180	140
HD11-1000/38	322	352	115	292	338	146	208	50	26	26	2-12	9	115	140
HD11-1500/38	360	384	130	324	370	160	224	69	35	35	4-12	9	130	140

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions
Model	A	B	E	F	H	h	J	K	O	P	M	Φ	C	D
HD11-100/38	140	190	50	160	200	100	110	/	/	/	8	7	50	140
HD11-100/48	192	190	50	160	200	100	110	/	/	/	8	7	100	140
HD11-200/38	190	195	70	160	210	110	110	/	/	/	8	7	70	140
HD11-200/48	270	210	70	160	220	115	110	/	/	/	8	7	140	140
HD11-400/38	210	260	80	210	260	126	146	/	/	/	12	7	80	180
HD11-400/48	300	270	80	210	270	130	146	/	/	/	12	7	160	190
HD11-600/38	270	332	100	272	300	133	239	40	/	/	16	9	100	140
HD11-600/48	340	332	90	272	300	133	239	40	/	/	16	9	180	140
HD11-1000/38	322	352	115	292	338	146	208	50	26	26	2-12	9	115	140
HD11-1000/48	440	352	115	292	338	146	208	50	26	26	2-12	9	230	140
HD11-1500/38	360	384	130	324	370	160	224	69	35	35	4-12	9	130	140
HD11-1500/48	490	384	130	324	370	160	224	69	35	35	4-12	9	260	140
HD11-2000/38	500	420	180	324	340	148	210	97	40	55	4-12	9	180	140
HD11-2000/48	680	420	180	324	340	148	210	97	40	55	4-12	9	360	140
HD11-3000/38	600	450	200	374	372	162	230	117	45	68	4-16	9	200	140
HD11-3000/48	790	450	200	374	372	162	230	117	45	68	4-16	9	400	140

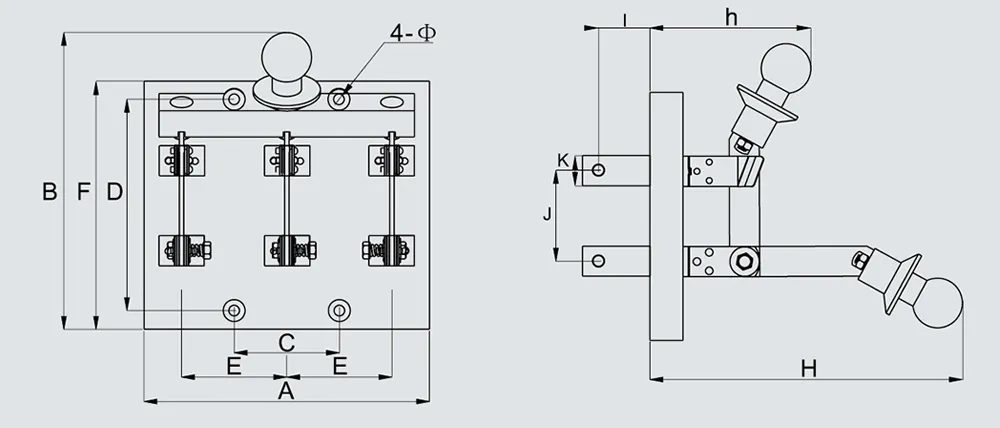

HD11-400/□ 9 and Below

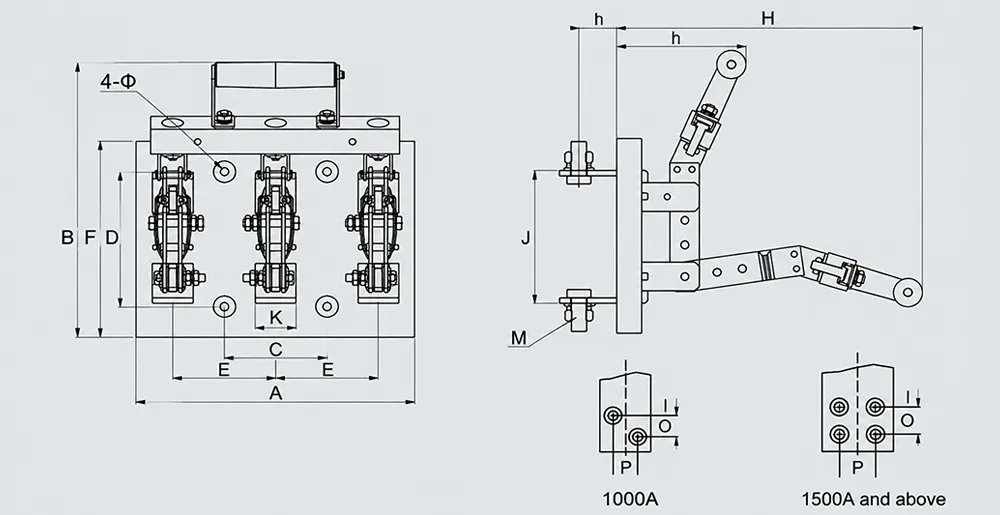

HD11-600/□ 9 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions
Model	A	B	E	F	H	h	I	J	K	O	P	M	Φ	C	D
HD11-200/39	190	215	70	190	210	110	26	60	/	/	/	8	7	70	160
HD11-200/49	260	225	70	190	220	115	26	60	/	/	/	8	7	140	160
HD11-400/39	210	262	80	215	260	126	29	70	/	/	/	12	7	80	190
HD11-400/49	300	272	80	215	270	130	29	70	/	/	/	12	7	160	190
HD11-600/39	260	332	100	260	300	133	37	140	40	/	/	16	9	100	220
HD11-600/49	360	332	100	260	300	133	37	140	40	/	/	16	9	200	220
HD11-1000/39	330	352	120	290	338	146	23	160	50	26	26	2-12	9	120	260
HD11-1000/49	450	352	120	290	338	146	23	160	50	26	26	2-12	9	240	260
HD11-1500/39	380	384	130	340	370	160	23	180	69	35	35	4-12	9	130	300
HD11-1500/49	510	384	130	340	370	160	23	180	69	35	35	4-12	9	260	300
HD11-2000/39	500	420	180	300	340	148	44	180	97	40	55	4-12	9	180	260
HD11-2000/49	580	420	180	300	340	148	44	180	97	40	55	4-12	9	360	260
HD11-3000/39	600	450	200	350	372	162	40	190	117	45	68	4-16	9	200	300
HD11-3000/49	790	450	200	350	372	162	40	190	117	45	68	4-16	9	400	300

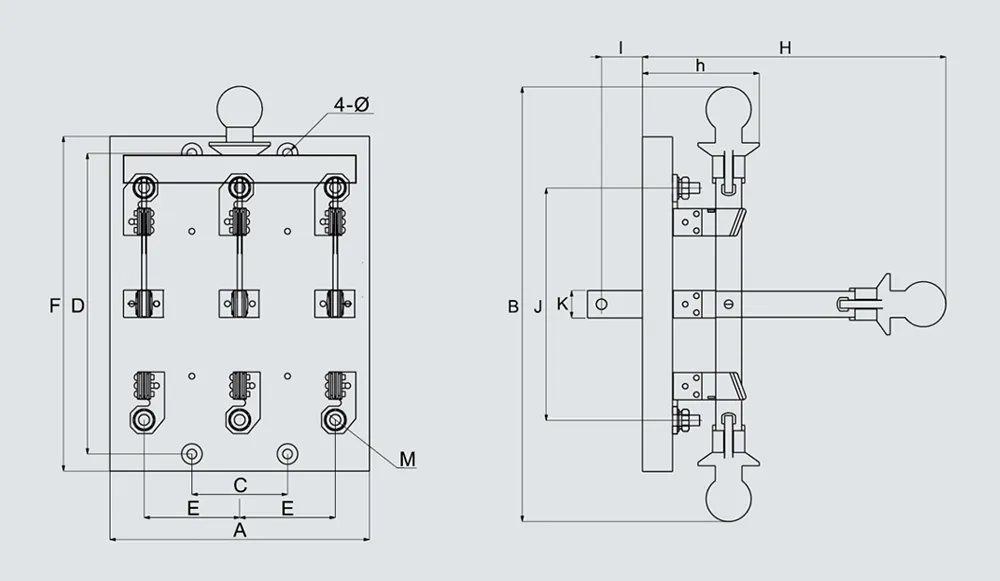

HS11-400/□ 8 and Below, Front-of-Panel Incoming / Rear-of-Panel Outgoing

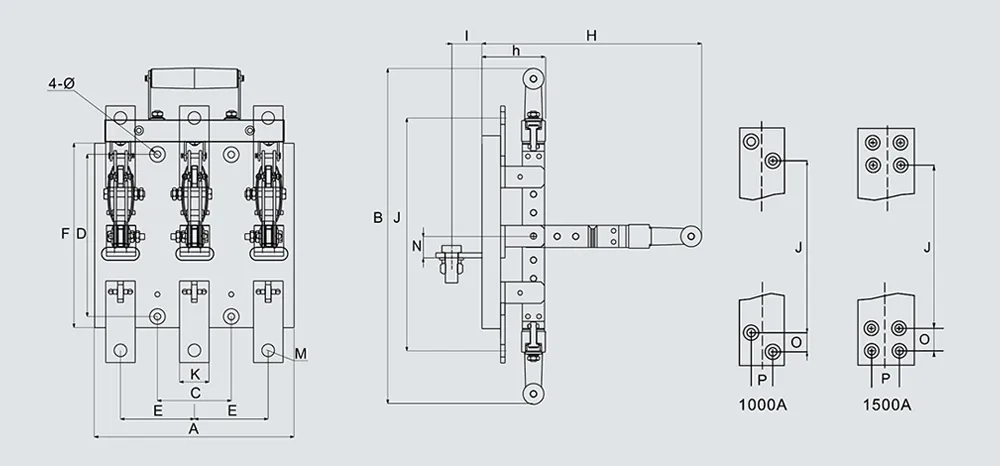

HS11-600/□ 8 and Below, Front-of-Panel Incoming / Rear-of-Panel Outgoing

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions												Mounting Dimensions
Model	A	B	E	F	H	h	J	K	I	N	O	P	M	Φ	C	D
HS11-200/38	190	320	70	220	220	85	170	20	26	/	/	/	8	7	70	220
HS11-200/48	265	360	70	220	240	82	170	20	26	/	/	/	8	7	140	220
HS11-400/38	220	425	80	312	290	105	243	30	29	/	/	/	12	9	80	280
HS11-400/48	290	440	100	312	300	100	319	40	37	/	/	/	16	9	160	280
HS11-600/38	270	455	100	250	300	90	243	40	30	26	/	/	12	9	100	220
HS11-600/48	340	455	90	250	300	90	319	40	37	30	/	/	16	9	180	200
HS11-1000/38	325	520	120	300	340	110	297	50	23	40	26	26	2-12	9	120	220
HS11-1000/48	450	520	120	300	340	110	297	50	23	40	26	26	2-12	9	240	220
HS11-1500/38	360	552	130	300	360	120	354	69	23	46	35	35	4-12	9	130	260
HS11-1500/48	490	552	130	300	360	120	354	69	23	46	35	35	4-12	9	260	260

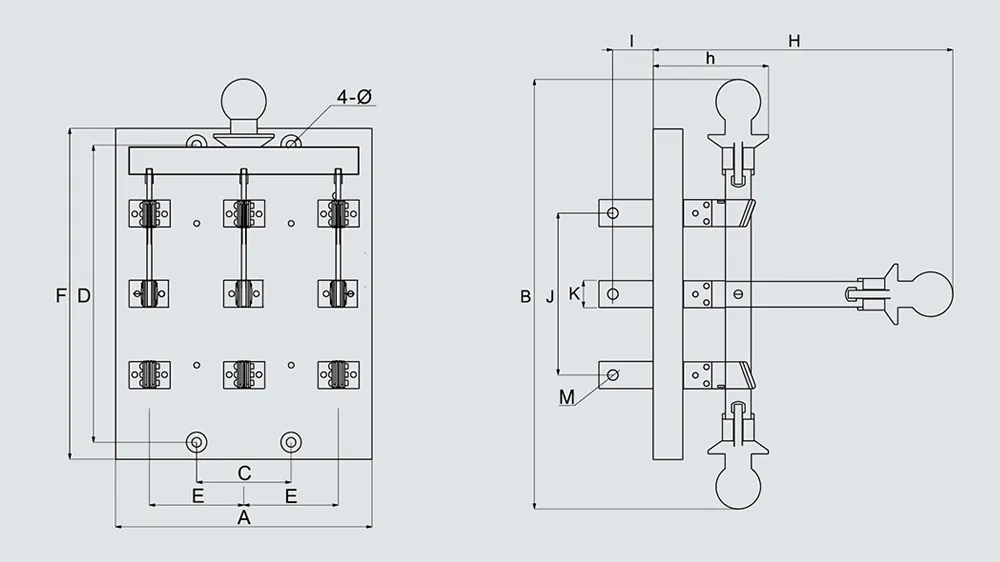

HS11-400/□ 9 and Below

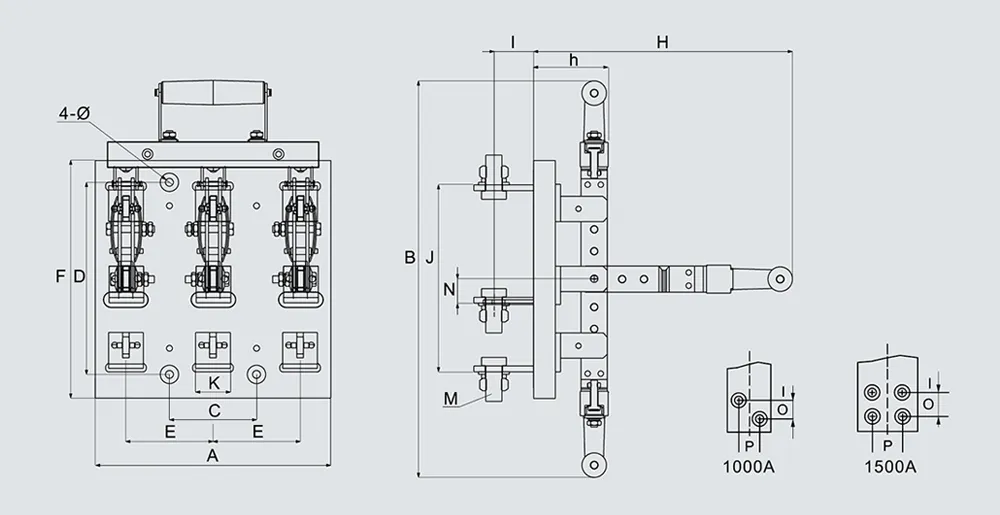

HS11-600/□ 9 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions												Mounting Dimensions
Model	A	B	E	F	H	h	J	K	I	N	O	P	M	Φ	C	D
HS11-200/39	190	320	70	245	220	85	120	20	26	/	/	/	8	7	70	220
HS11-200/49	265	360	70	245	240	82	120	20	26	/	/	/	8	7	140	220
HS11-400/39	220	425	80	285	290	105	140	30	29	/	/	/	12	9	80	260
HS11-400/49	300	440	80	285	300	100	140	30	29	/	/	/	12	9	160	260
HS11-600/39	270	455	100	300	300	90	220	37	30	/	/	/	16	9	100	300
HS11-600/49	340	455	90	300	300	90	220	37	30	/	/	/	16	9	180	300
HS11-1000/39	330	520	120	340	340	110	250	50	23	26	26	26	2-12	9	120	350
HS11-1000/49	450	520	120	390	340	110	250	50	23	26	26	26	2-12	9	240	350
HS11-1500/39	380	552	130	440	360	120	285	69	23	46	35	35	4-12	9	130	410
HS11-1500/49	510	552	130	440	360	120	285	69	23	46	35	35	4-12	9	260	410

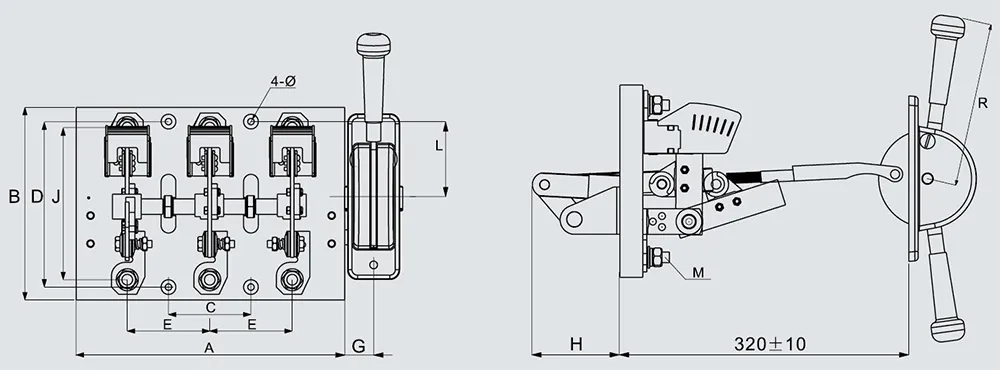

HD12-400 and Below

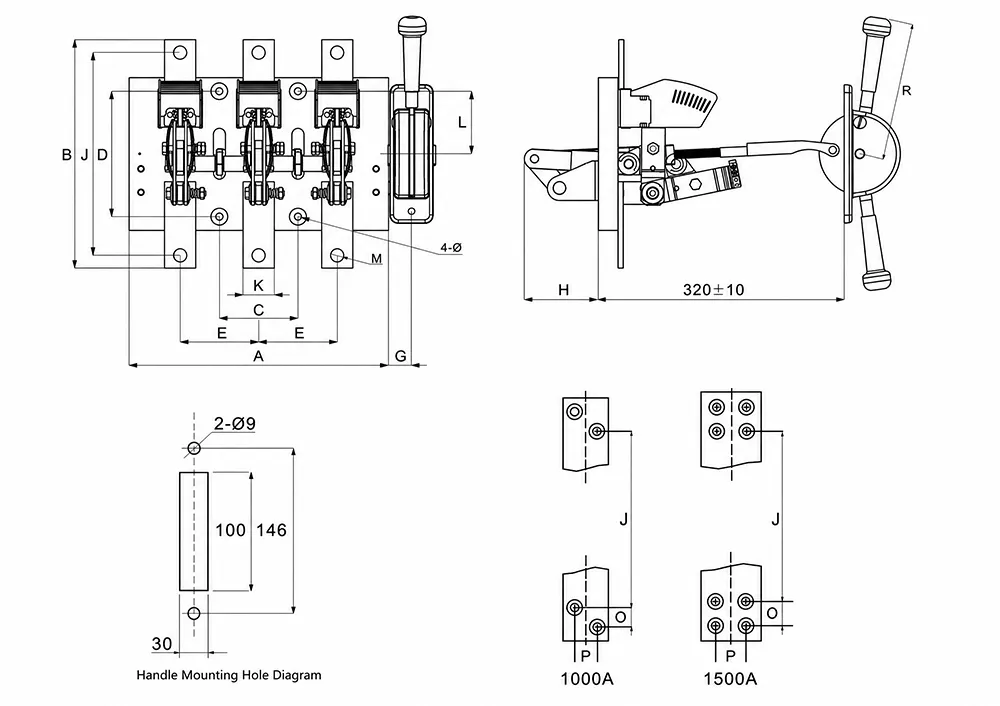

HD12-600 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions
Model	A	B	E	G	H	R	L	J	K	O	P	M	Φ	C	D
HD12-200/31	280	200	80	40	80	175	75	130	/	/	/	8	7	80	160
HD12-400/31	310	210	90	30	90	175	75	166	/	/	/	12	7	90	160
HD12-600/31	330	292	100	30	95	175	80	259	40	/	/	16	9	100	160
HD12-1000/31	400	322	120	30	110	230	80	238	50	26	26	2-12	9	120	160
HD12-1500/31	440	354	130	30	110	230	80	254	69	35	35	4-12	9	130	160
HD12-1500/30	440	354	130	30	110	230	80	254	69	35	35	4-12	9	130	160

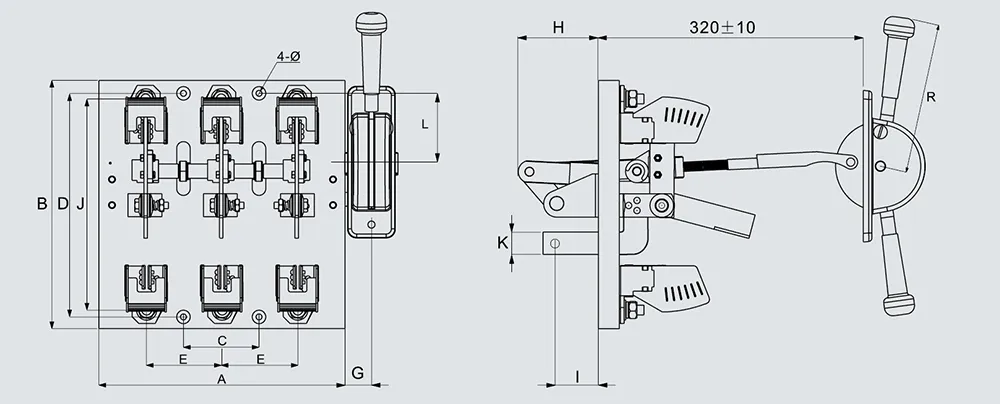

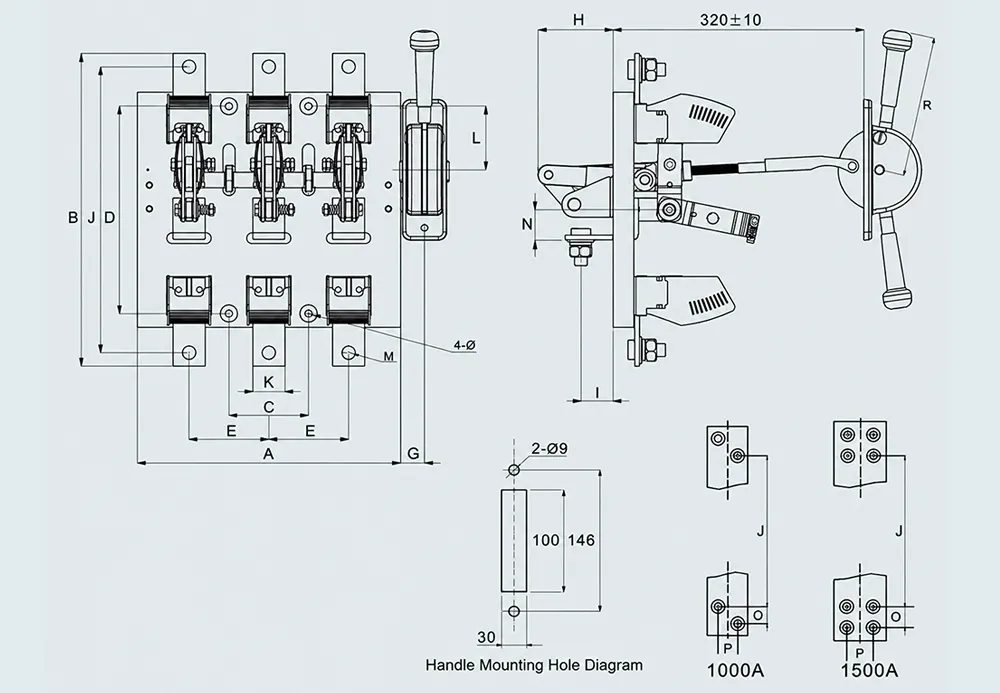

HS12-400 and Below

HS12-600 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions
Model	A	B	E	H	R	L	N	J	K	O	P	M	Φ	C	D
HS12-200/31	280	280	80	80	175	75	210	26	/	/	/	8	7	80	240
HS12-400/31	310	300	90	90	175	65	256	29	/	/	/	12	7	90	240
HS12-600/31	330	392	100	95	175	68	359	37	40	/	/	16	9	100	240
HS12-1000/31	400	442	120	110	230	62	358	50	26	26	26	2-12	9	120	240
HS12-1500/31	440	484	130	110	230	73	384	69	35	35	35	4-12	9	130	280
HS12-1500/30	440	484	130	110	230	73	384	69	35	35	35	4-12	9	130	280

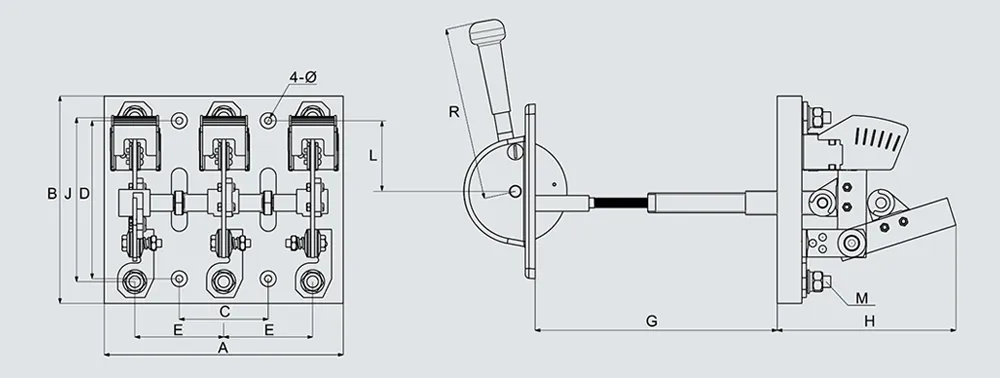

HD13-400 and Below

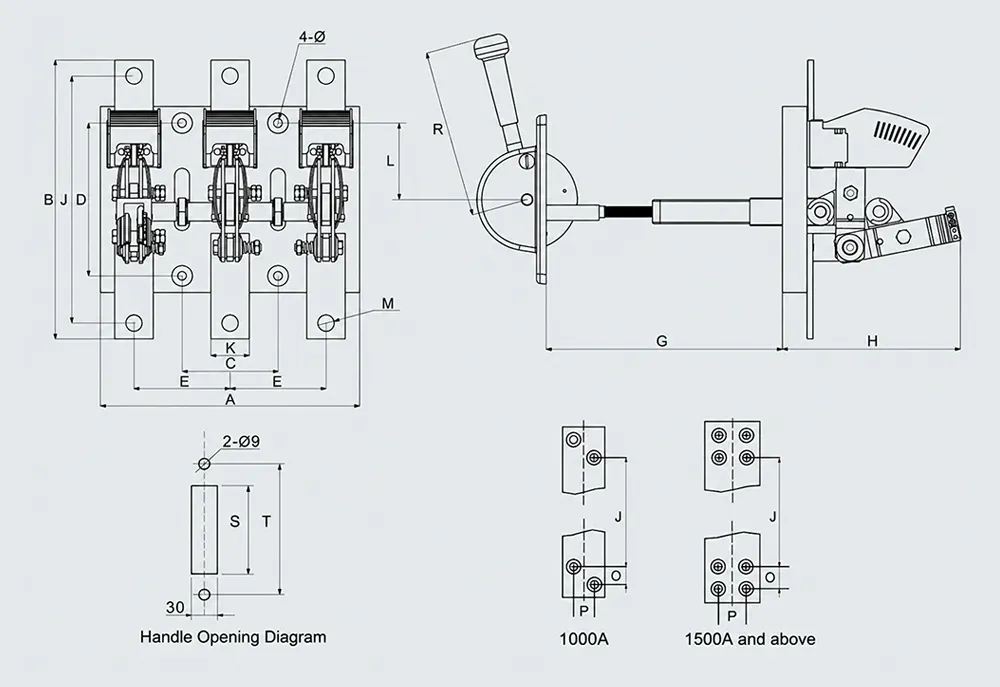

HD13-600 and Above

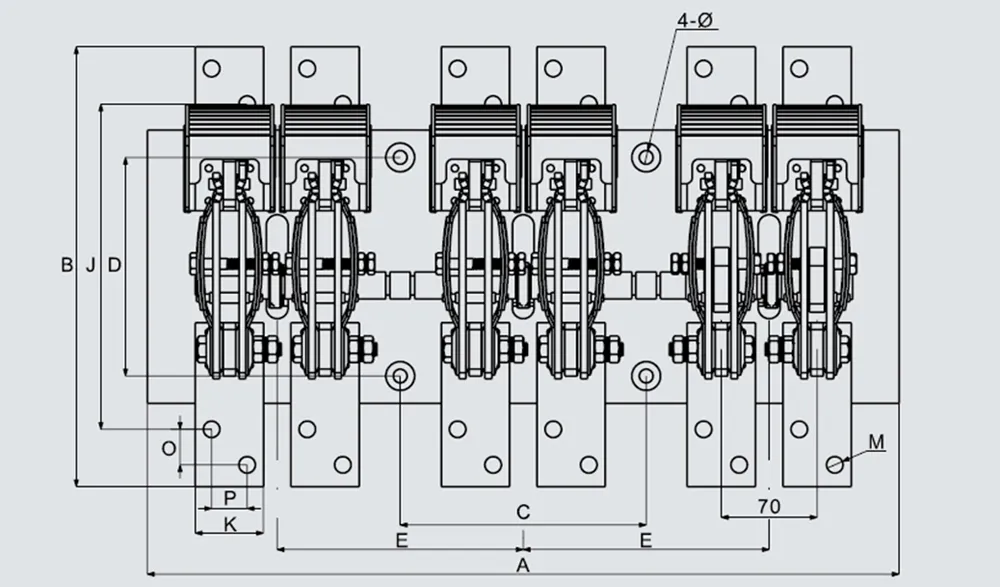

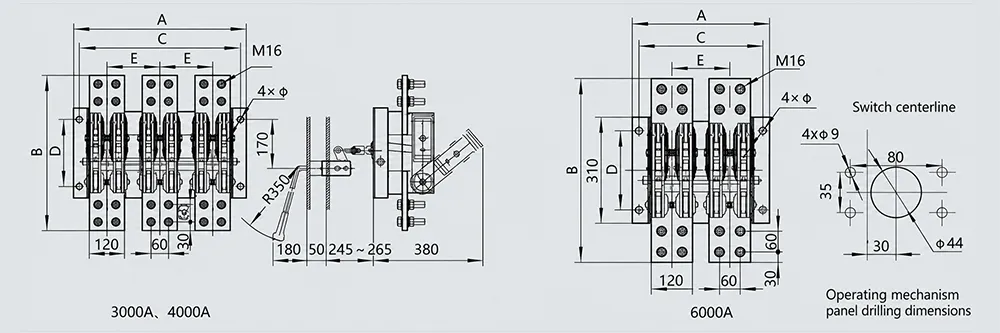

HD13-2000/31、41 Plan Reference Drawing

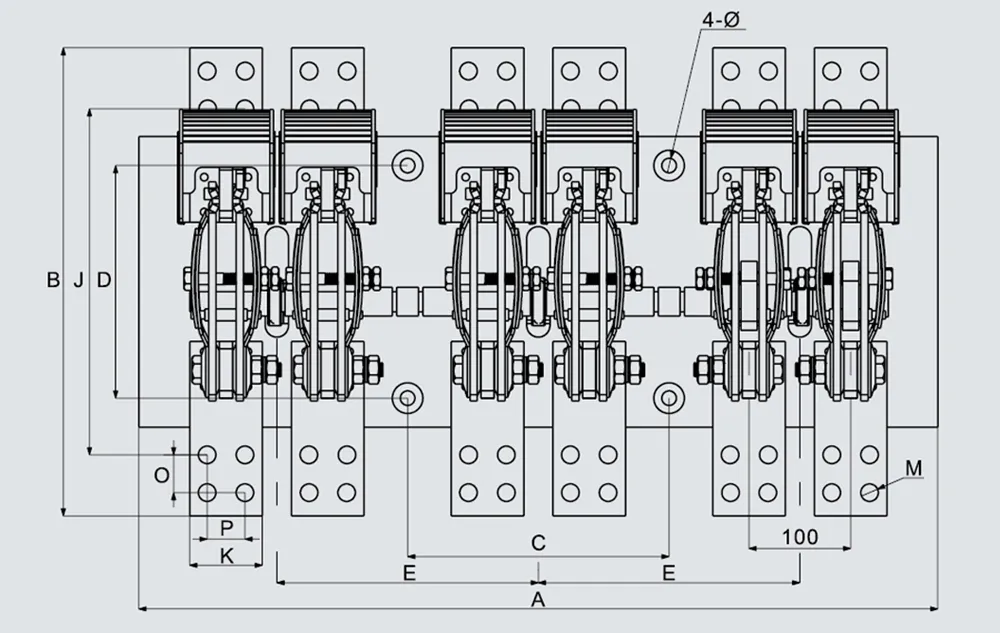

HD13-3000/31、41 Plan Reference Drawing

Baseplate Machining Mode: Compression Molded (Glass Fiber Plate)

Model	Overall Dimensions											Mounting Dimensions				Handle Opening Dimension
	A	B	E	H	G	R	J	K	L	O	P	M	Φ	C	D	S	T
HD13-200/31	210	180	80	160	245-265	175	130	/	75	/	/	8	7	80	160	100	146
HD13-400/31	240	206	90	180	245-265	175	166	/	75	/	/	12	7	90	160	100	146
HD13-600/31	260	292	100	185	245-265	175	259	40	80	/	/	16	9	100	160	100	146
HD13-1000/31	313	322	120	230	245-265	230	238	50	26	26	26	2-12	9	120	160	100	146
HD13-1500/31	340	354	130	235	245-265	230	254	69	35	35	35	4-12	9	130	160	100	146
HD13-1500/30	338	354	130	235	245-265	230	254	69	35	35	35	4-12	9	130	160	100	146

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions				Handle Opening Dimension
	A	B	E	H	G	R	J	K	L	O	P	M	Φ	C	D	S	T
HD13-200/31	210	192	80	160	245-265	175	130	/	75	/	/	8	7	80	160	100	146
HD13-200/41	290	190	80	160	245-265	175	130	/	75	/	/	8	7	160	160	100	146
HD13-400/31	242	206	90	180	245-265	175	166	/	75	/	/	12	7	90	160	100	146
HD13-400/41	330	210	90	180	245-265	175	166	/	75	/	/	12	7	180	160	100	146
HD13-600/31	270	292	100	185	245-265	175	259	40	80	/	/	16	9	100	160	100	146
HD13-600/41	370	292	100	185	245-265	175	259	40	80	/	/	16	9	200	160	100	146
HD13-1000/31	325	322	120	230	245-265	230	238	50	80	26	26	2-12	9	120	160	100	146
HD13-1000/41	450	322	120	230	245-265	230	238	50	80	26	26	2-12	9	240	160	100	146
HD13-1500/31	360	354	130	235	245-265	230	254	69	80	35	35	4-12	9	130	160	100	146
HD13-1500/41	490	354	130	235	245-265	230	254	69	80	35	35	4-12	9	260	160	100	146
HD13-1500/30	360	354	130	235	245-265	230	254	69	80	35	35	4-12	9	130	160	100	146
HD13-1500/40	490	354	130	235	245-265	230	254	69	80	35	35	4-12	9	260	160	100	146
HD13-2000/30	500	350	180	230	265-285	280	240	97	80	40	55	4-12	9	180	160	130	170
HD13-2000/40	680	350	180	230	265-285	280	240	97	80	40	55	4-12	9	360	160	130	170
HD13-2000/31	550	322	180	230	265-285	280	238	2-50	80	26	26	4-12	9	180	160	130	170
HD13-2000/41	730	322	180	230	265-285	280	238	2-50	80	26	26	4-12	9	360	160	130	170
HD13-3000/30	600	390	200	235	265-285	280	251	117	80	45	68	4-16	9	200	160	130	170
HD13-3000/40	790	390	200	235	265-285	280	251	117	80	45	68	4-16	9	400	160	130	170
HD13-3000/31	720	350	230	235	265-285	280	254	2-69	80	35	35	4-12	9	230	160	130	170
HD13-3000/41	920	350	230	235	265-285	280	254	2-69	80	35	35	4-12	9	460	160	130	170

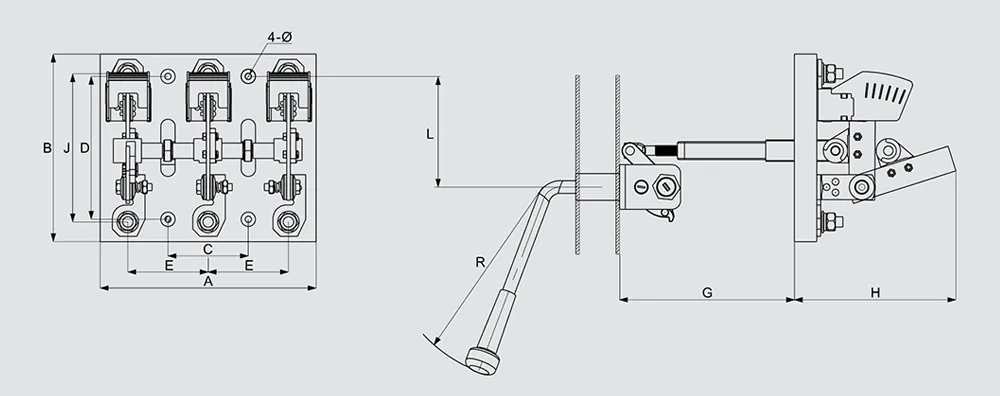

HD13BX-400 and Below

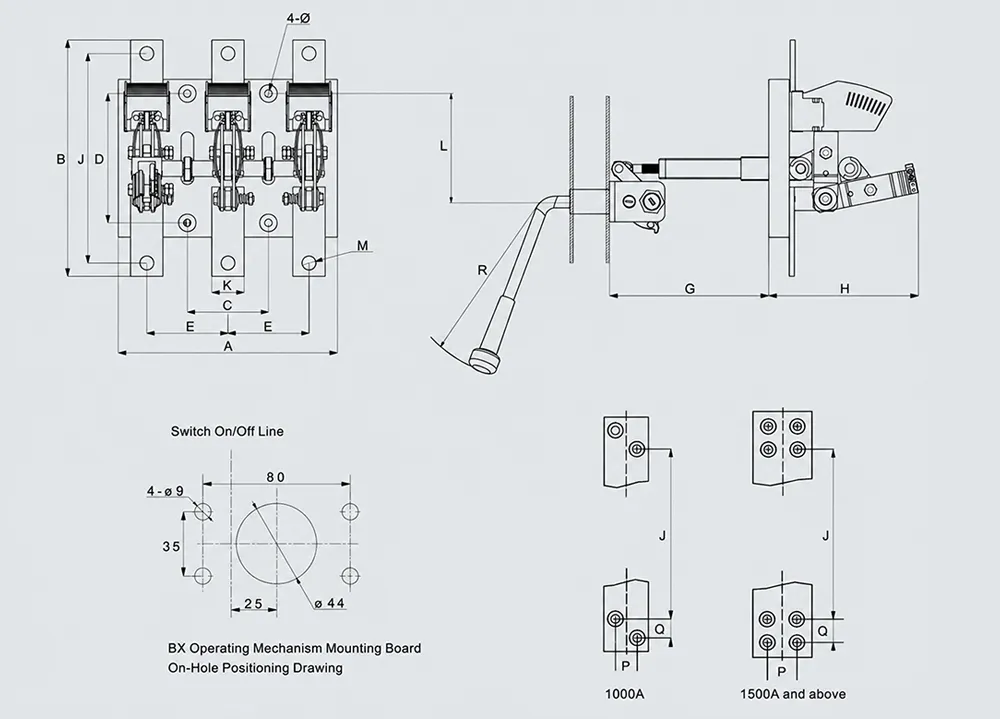

HD13BX-600 and Above

Baseplate Machining Mode: Compression Molded (Glass Fiber Plate)

Model	Overall Dimensions											Mounting Dimensions
	A	B	E	H	G	R	J	K	L	O	P	M	Φ	C	D
HD13BX-200/31	210	180	80	160	215-235	330	130	/	130	/	/	8	7	80	160
HD13BX-400/31	240	206	90	180	215-235	330	166	/	125	/	/	12	7	90	160
HD13BX-600/31	260	292	100	185	215-235	330	259	40	133	/	/	16	9	100	160
HD13BX-1000/31	313	322	120	230	225-245	330	238	50	137	26	26	2-12	9	120	160
HD13BX-1500/31	340	354	130	235	225-245	330	254	69	133	35	35	4-12	9	130	160
HD13BX-1500/30	338	354	130	235	225-245	330	254	69	133	35	35	4-12	9	130	160

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions											Mounting Dimensions
	A	B	E	H	G	R	J	K	L	O	P	M	Φ	C	D
HD13BX-200/31	210	192	80	160	215-235	330	130	/	130	/	/	8	7	80	160
HD13BX-200/41	290	190	80	160	215-235	330	130	/	130	/	/	8	7	160	160
HD13BX-400/31	242	206	90	180	215-235	330	166	/	125	/	/	12	7	90	160
HD13BX-400/41	330	210	90	180	215-235	330	166	/	125	/	/	12	7	180	160
HD13BX-600/31	270	292	100	185	215-235	330	259	40	133	/	/	16	9	100	160
HD13BX-600/41	370	292	100	185	215-235	330	259	40	133	/	/	16	9	200	160
HD13BX-1000/31	325	322	120	230	225-245	330	238	50	137	26	26	2-12	9	120	160
HD13BX-1000/41	450	322	120	230	225-245	330	238	50	137	26	26	2-12	9	240	160
HD13BX-1500/31	360	354	130	235	225-245	330	254	69	133	35	35	4-12	9	130	160
HD13BX-1500/41	490	354	130	235	225-245	330	254	69	133	35	35	4-12	9	260	160
HD13BX-1500/30	360	354	130	235	225-245	330	254	69	133	35	35	4-12	9	130	160
HD13BX-1500/40	490	354	130	235	225-245	330	254	69	133	35	35	4-12	9	260	160
HD13BX-2000/30	500	350	180	230	245-265	330	240	97	137	40	55	4-12	9	180	160
HD13BX-2000/40	680	350	180	230	245-265	330	240	97	137	40	55	4-12	9	360	160
HD13BX-2000/31	550	322	180	230	245-265	330	238	2-50	137	26	26	2-12	9	180	160
HD13BX-2000/41	730	322	180	230	245-265	330	238	2-50	137	26	26	2-12	9	360	160
HD13BX-3000/30	600	390	200	235	245-265	330	251	117	133	45	68	4-16	9	200	160
HD13BX-3000/40	790	390	200	235	245-265	330	251	117	133	45	68	4-16	9	400	160
HD13BX-3000/31	720	350	230	235	245-265	330	254	2-69	133	35	35	2-12	9	230	160
HD13BX-3000/41	920	350	230	235	245-265	330	254	2-69	133	35	35	2-12	9	460	160

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions
	A	B	C	D	E	J	K	Φ
HD13-3000/1	210	535	–	172	230	130	164	14
HD13-4000/1	210	535	–	172	230	130	164	14
HD13-6000/1	390	535	160	350	230	140	180	14
HD13-3000/2	470	535	230	430	230	140	180	14
HD13-4000/2	470	535	230	430	230	140	180	14
HD13-3000/3	700	535	230	660	230	140	180	14
HD13-4000/3	700	535	230	660	230	140	180	14

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions
	A	B	C	D	E	Φ
HD13-3000/1 BX	210	535	172	230	–	14
HD13-4000/1 BX	210	535	172	230	–	14
HD13-6000/1 BX	390	535	350	230	160	14
HD13-3000/2 BX	470	535	430	230	230	14
HD13-4000/2 BX	470	535	430	230	230	14
HD13-3000/3 BX	700	535	660	230	230	14
HD13-4000/3 BX	700	535	660	230	230	14

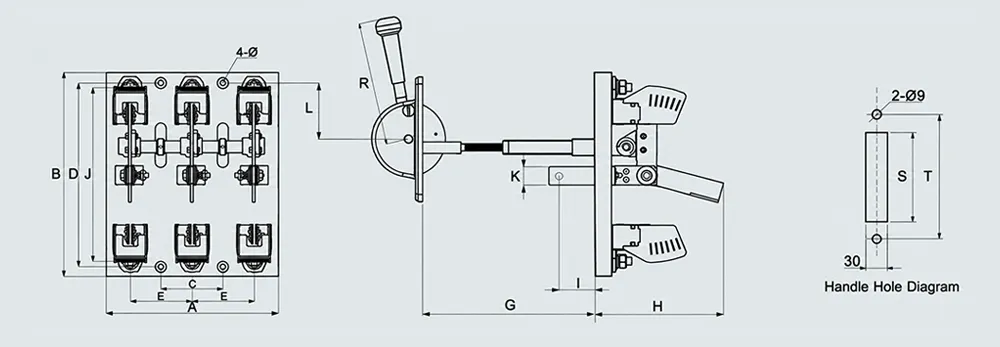

HS13-400 and Below

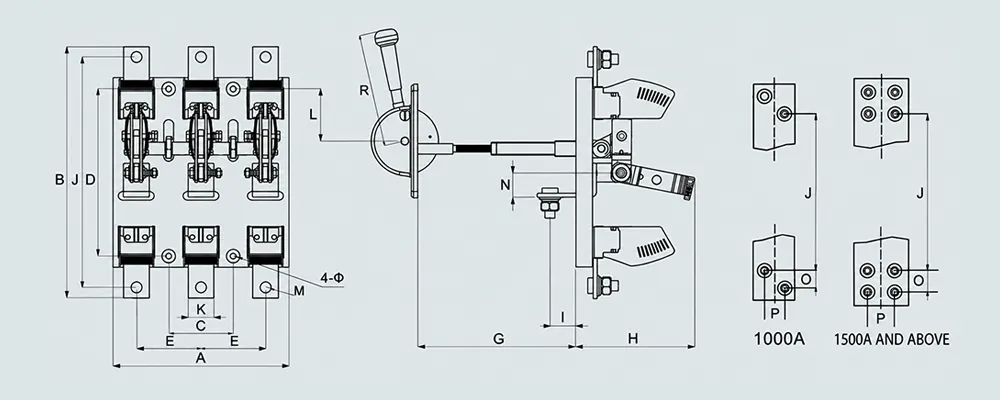

HS13-600 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions												Mounting Dimensions				Handle Opening Dimension
Model	A	B	E	H	G	R	J	K	L	I	O	P	M	Φ	C	D	S	T
HS13-200/31	210	290	80	160	245-265	175	210	/	75	26	/	/	8	7	80	240	100	146
HS13-200/41	270	270	80	160	245-265	175	210	/	75	26	/	/	8	7	160	240	100	146
HS13-400/31	242	300	90	180	245-265	175	256	/	65	29	/	/	12	7	90	240	100	146
HS13-400/41	330	300	90	180	245-265	175	256	/	65	29	/	/	12	7	180	240	100	146
HS13-600/31	270	392	100	185	245-265	175	359	40	68	37	/	/	16	9	100	240	100	146
HS13-600/41	370	392	100	185	245-265	175	359	40	68	37	/	/	16	9	200	240	100	146
HS13-1000/31	330	442	120	230	245-265	230	358	50	68	23	26	26	2-12	9	120	240	100	146
HS13-1000/41	450	442	120	230	245-265	230	358	50	68	23	26	26	2-12	9	240	240	100	146
HS13-1500/31	360	484	130	255	245-265	230	384	69	73	23	35	35	4-12	9	130	260	130	170
HS13-1500/41	500	484	130	255	245-265	230	384	69	73	23	35	35	4-12	9	260	260	130	170
HS13-1500/30	360	484	130	255	245-265	230	384	69	73	23	35	35	4-12	9	130	260	130	170
HS13-1500/40	500	484	130	255	245-265	230	384	69	73	23	35	35	4-12	9	260	260	130	170
HS13-2000/30	500	474	180	230	245-265	280	358	97	62	44	40	55	4-12	9	180	260	130	170
HS13-2000/40	680	474	180	230	245-265	280	358	97	62	44	40	55	4-12	9	360	260	130	170
HS13-2000/31	550	442	180	230	245-265	280	358	2-50	62	23	26	26	2-12	9	180	260	130	170
HS13-2000/41	730	442	180	230	245-265	280	358	2-50	62	23	26	26	2-12	9	360	260	130	170
HS13-3000/30	600	534	200	260	245-265	280	381	117	73	40	45	68	4-16	9	200	260	130	170
HS13-3000/40	790	534	200	260	245-265	280	381	117	73	40	45	68	4-16	9	400	260	130	170
HS13-3000/31	720	484	230	255	245-265	280	384	2-69	73	23	35	35	2-12	9	230	260	130	170
HS13-3000/41	920	484	230	255	245-265	280	384	2-69	73	23	35	35	2-12	9	460	260	130	170

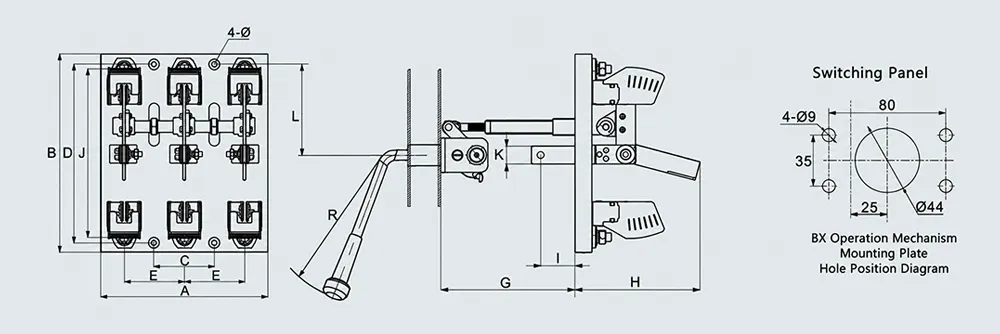

HS13BX-400 and Below

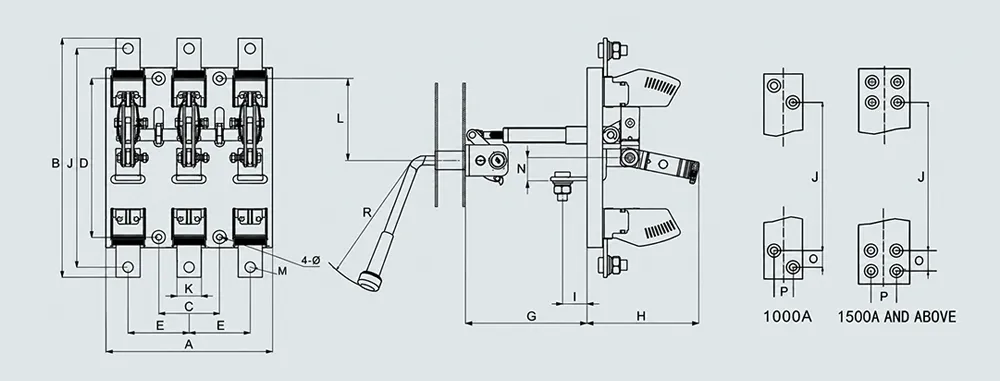

HS13BX-600 and Above

Baseplate Machining Mode: Machined (Bakelite Plate, Epoxy Plate)

Model	Overall Dimensions												Mounting Dimensions
Model	A	B	E	H	G	R	J	K	L	I	O	P	M	Φ	C	D
HS13BX-200/31	210	270	80	160	215-235	330	210	/	110	26	/	/	8	7	80	240
HS13BX-200/41	290	270	80	160	215-235	330	210	/	110	26	/	/	8	7	160	240
HS13BX-400/31	242	300	90	180	215-235	330	256	/	110	29	/	/	12	7	90	240
HS13BX-400/41	330	300	90	180	215-235	330	256	/	110	29	/	/	12	7	180	240
HS13BX-600/31	270	392	100	185	215-235	330	359	40	110	37	/	/	16	9	100	240
HS13BX-600/41	370	392	100	185	215-235	330	359	40	110	37	/	/	16	9	200	240
HS13BX-1000/31	330	442	120	230	240-260	330	358	50	105	23	26	26	2-12	9	120	240
HS13BX-1000/41	450	442	120	230	250-270	330	358	50	105	23	26	26	2-12	9	240	240
HS13BX-1500/31	360	484	130	255	250-270	330	384	69	110	23	35	35	4-12	9	130	260
HS13BX-1500/41	500	484	130	255	250-270	330	384	69	110	23	35	35	4-12	9	260	260
HS13BX-1500/30	360	484	130	255	250-270	330	384	69	110	23	35	35	4-12	9	130	260
HS13BX-1500/40	500	484	130	255	245-265	330	384	69	110	23	35	35	4-12	9	260	260
HS13BX-2000/30	500	474	180	230	245-265	330	358	97	120	44	40	55	4-12	9	180	260
HS13BX-2000/40	680	474	180	230	245-265	330	358	97	120	44	40	55	4-12	9	360	260
HS13BX-2000/31	550	442	180	230	245-265	330	358	2-50	120	23	26	26	2-12	9	180	260
HS13BX-2000/41	730	442	180	230	245-265	330	358	2-50	120	23	26	26	2-12	9	360	260
HS13BX-3000/30	600	534	200	260	245-265	330	381	117	110	40	45	68	4-16	9	200	260
HS13BX-3000/40	790	534	200	260	245-265	330	381	117	110	40	45	68	4-16	9	400	260
HS13BX-3000/31	720	484	230	255	245-265	330	384	2-69	110	23	35	35	2-12	9	230	260
HS13BX-3000/41	920	484	230	255	245-265	330	384	2-69	110	23	35	35	2-12	9	460	260
