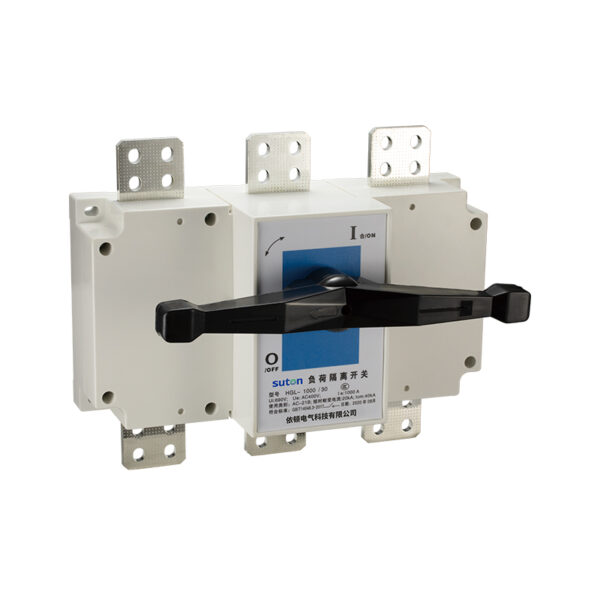

HGL(ETGL) series Load disconnector

Scope of Application

The HGL (ETGL) series load isolating switches are primarily used in circuits with a frequency of 50 Hz, a rated voltage of 400 V and a rated current of up to 3,150 A. They are designed for infrequent switching of circuits and for the isolation of electrical equipment.

Product Overview

• The spring-energised instantaneous release mechanism enables rapid make or break (13.8 metres per second), irrespective of the speed of the operating handle, thereby significantly enhancing arc-quenching capability
• The casing, manufactured from glass fibre-reinforced unsaturated polyester resin, offers excellent flame-retardant properties, dielectric properties, carbonisation resistance and impact resistance.
• The parallel double-break contacts feature a self-cleaning mechanism.
• All contacts have two separate contact surfaces. The large isolation distance allows the handle to be secured with three locks simultaneously when in the ‘0’ position, reliably preventing accidental operation.

Normal operating and installation conditions

• Ambient air temperature not exceeding +40°C and not falling below -5°C; relative humidity not exceeding 95 per cent
• Altitude of the installation site not exceeding 2,000 metres
• No explosive atmospheres
• No exposure to rain or snow

Note: If the equipment is intended for use in conditions where the ambient air temperature exceeds +40°C or falls below -5°C, the user should inform the manufacturer.

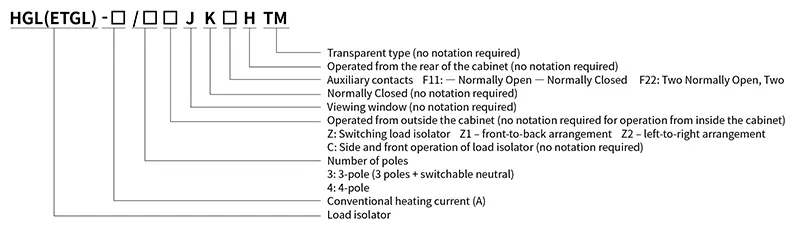

HGL(ETGL)-63~3150A Load disconnector

• The HGL (ETGL) series load switches are available in seven sizes ranging from 63 A to 3150 A. These are basic models with a modular design, available in three-pole and four-pole configurations (three-pole plus a neutral pole capable of being switched on and off), and are primarily used for closing and opening circuits or for electrical isolation; models with a rated current of 1000 A and above are suitable for electrical isolation only.
• A marking window on the front panel indicates the contact make/break status.
• A rear observation window can be provided on request to allow direct observation of the contact status; for window styles, refer to the HGL(ETGL)-160A-1600A/KH cabinet-mounted load isolating switch.
• Two sets of auxiliary contacts may be fitted.

Complies with the standard

International Standards

IEC 60947-1 《Low-voltage switchgear and controlgear – Part 1: General》

IEC 60947-3 《Low-voltage switchgear and controlgear – Switches, isolators, isolating switches and fuses》

National Standards

GB/T 14048.1 《General Requirements for Low-Voltage Switchgear and Control Gear》

GB/T 14048.3 《Control Gear for Low-Voltage Switchgear, Low-Voltage Switches, Isolators, Isolating Switches and Fuse-Combined Units》

Key Technical Specifications

Rated current In(A)		63A		100A		160A		250A		630A				1600A			3150A
Conventional heating current Ith(A)		40	63	80	100	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150
Rated insulation voltage Ui(V) (Installation Categories IV)		690		690		690		690		690				750			1000
Dielectric strength (V)		1890		1890		2200		2200		2200				2200			2200
Rated impulse withstand voltage Uimp(kV)		8		8		8		8		8				8			12
Rated operating current le(A)	AC-21B	40	63	80	100	125	160	200	250	315	400	500	630	1000	1250	1600	2000	2500	3150
	AC-22B	40	63	80	100	125	160	200	250	315	400	500	630	/	/	/	/	/	/
	AC-23B	40	63	80	100	125	160	200	250	315	400	500	630	/	/	/	/	/	/
Motor power P(kW)	400V	18.5	25	40	40	63	80	100	132	160	220	280	315	560	560	560	710	710	710
Rated short-time withstand current Icw(kA Rms) 1s		6	6	6	6	6	6	20	20	20	20	20	20	50	50	50	50	50	50
Rated breaking capacity Icn(A Rms) AC-23B 380V		320	504	640	800	1000	1080	1600	2000	2520	3200	4000	5040	1500	1875	2400	3000	3750	4725
Rated switching capacity Icm(A Rms) AC-23B 380V		400	630	800	1000	1250	1600	2000	2500	3150	4000	5000	6300	1500	1875	2400	3000	3750	4725
Rated short-circuit making capacity Icm(kA Peak)		9.2	9.2	9.2	9.2	9.2	9.2	40	40	40	40	40	40	70	70	70	105	105	105
Mechanical life 400V		1700	1700	1700	1700	1400	1400	1400	1400	800	800	800	800	500	500	500	500	500	300
Electrical life 400V		300	300	300	300	200	200	200	200	200	200	200	200	100	100	100	100	100	100
Operating torque (N.m)		1.2	1.2	1.2	1.2	6.5	6.5	10	10	21	21	21	21	37	37	37	50	50	50
Weight (kg)	3 Pole	0.4	0.4	0.55	0.55	1.2	1.2	2	2	4.4	4.4	4.9	4.9	13.2	14.6	15.6	25.5	25.5	31
	4 Pole	0.42	0.42	0.62	0.62	1.4	1.4	2.35	2.35	5.5	5.5	6.3	6.3	14.8	17.1	18	37.5	37.5	51.5

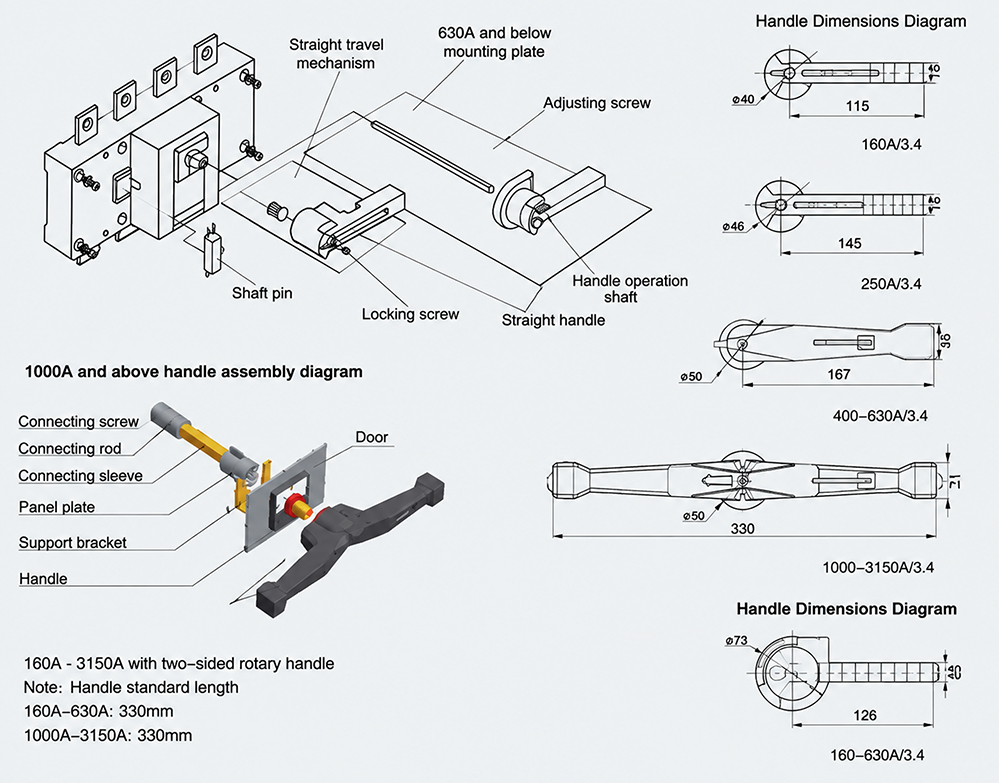

Operating Instructions

Direct operation: the handle is fitted directly in the centre of the switch

External operation: the handle is fitted on the outside of the switchboard door

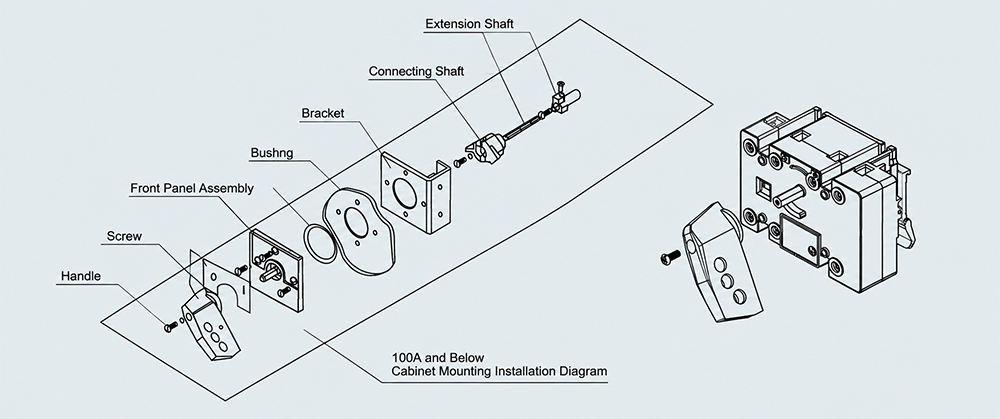

HGL(ETGL)-63A~100A Load disconnector

63A-100A are suitable for switching circuits on and off or for electrical isolation

63A-100A are available in 3-pole and 4-pole versions (3-pole plus a switchable neutral pole)

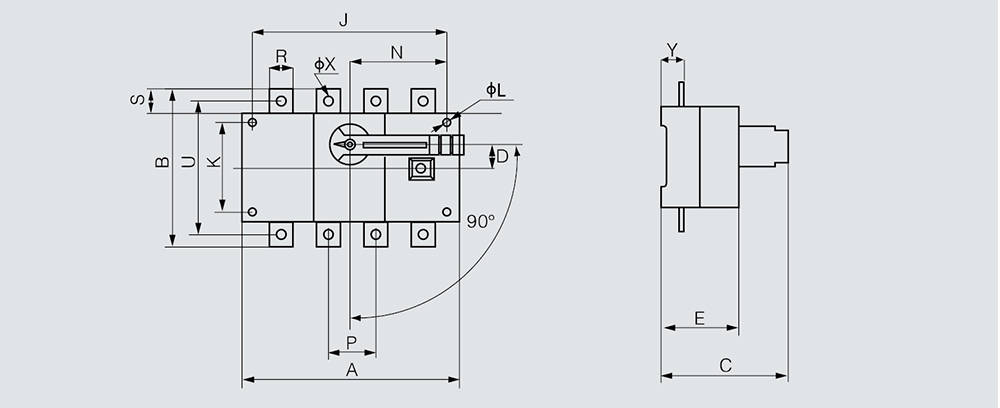

HGL(ETGL)-160A-630A Operations inside the cabinet

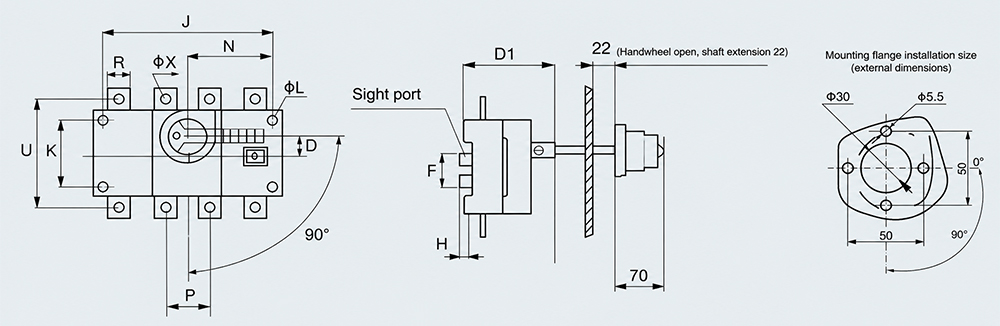

HGL(ETGL)-160A-630A Operations from outside the cabinet

Key Technical Specifications

Specifications	Dimensions																Installation dimensions
In	A	B	C	D	D1	E	ΦL	F	H	N	P	R	S	U	ΦX	Y	J	K
125A/3	140	135	121	15	93	71	5.5	50	10	75	36	20	25	115	9	24	120	65
125A/4	170	135	121	15	93	71	5.5	50	10	75	36	20	25	115	9	24	150	65
160A/3	140	135	121	15	93	71	5.5	50	10	75	36	20	25	115	9	24	120	65
160A/4	170	135	121	15	93	71	5.5	50	10	75	36	20	25	115	9	24	150	65
200A/3	180	170	144	20	104	84	5.5	79	15	105	50	25	30	140	11	25	160	90
200A/4	230	170	144	20	104	84	5.5	79	15	105	50	25	30	140	11	25	210	90
250A/3	180	170	144	20	104	84	5.5	79	15	105	50	25	30	140	11	25	160	90
250A/4	230	170	144	20	104	84	5.5	79	15	105	50	25	30	140	11	25	210	90
315A/3	230	240	179	30	137	115	7	95	20	135	65	32	40	206	11	37	210	140
315A/4	290	240	179	30	137	115	7	95	20	135	65	32	40	206	11	37	270	140
400A/3	230	240	179	30	137	115	7	95	20	135	65	32	40	206	11	37	210	140
400A/4	290	240	179	30	137	115	7	95	20	135	65	32	40	206	11	37	270	140
500A/3	230	260	179	30	137	115	7	95	20	135	65	40	50	220	13	37.5	210	140
500A/4	290	260	179	30	137	115	7	95	20	135	65	40	50	220	13	37.5	270	140
630A/3	230	260	179	30	137	115	7	95	20	135	65	40	50	220	13	37.5	210	140
630A/4	290	260	179	30	137	115	7	95	20	135	65	40	50	220	13	37.5	270	140

Outline and installation Dimensions(mm)

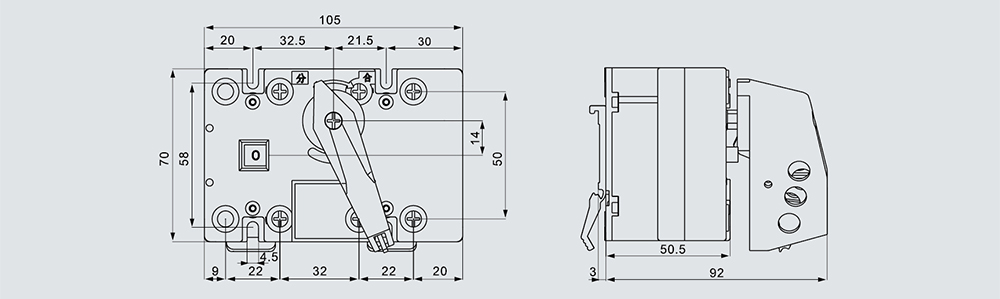

HGL(ETGL)-63A Operations inside the cabinet

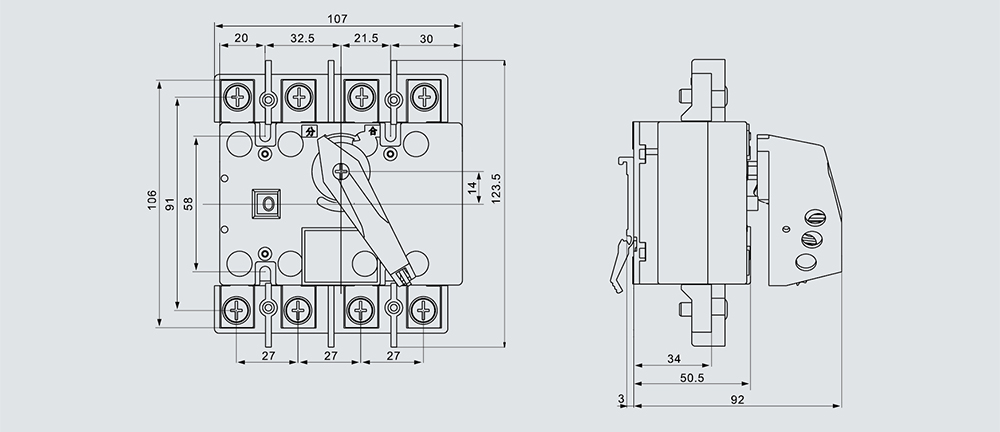

HGL(ETGL)-100A Operations inside the cabinet

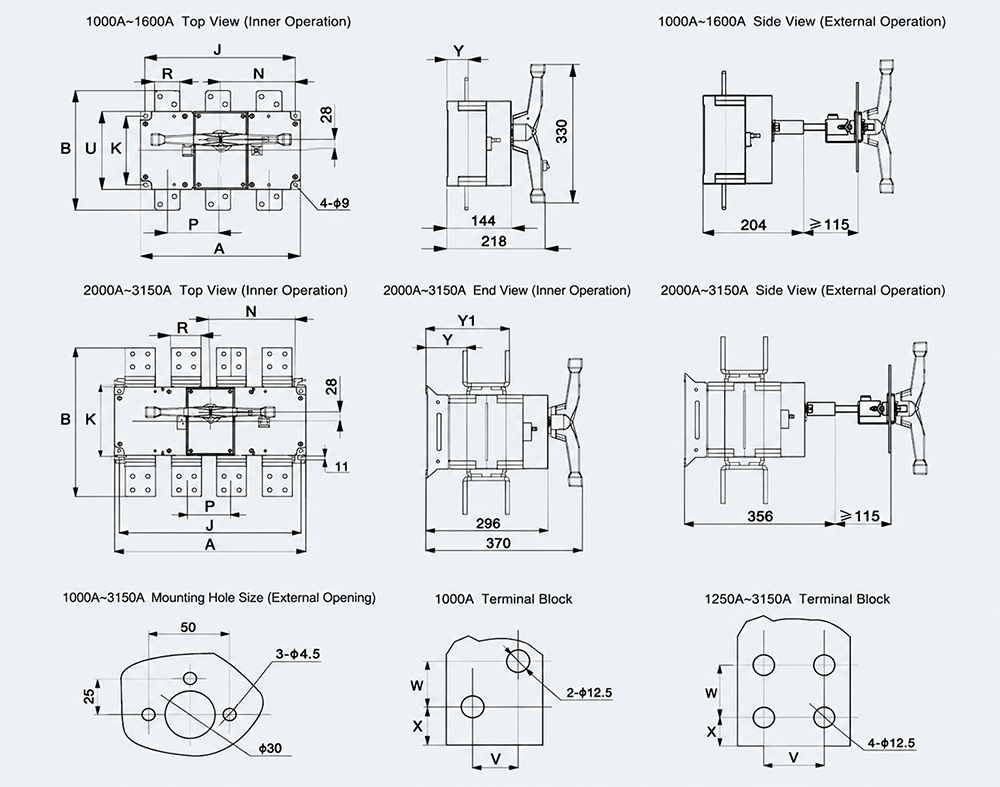

HGL(ETGL)-1000~3150A 0utline and installation Dimensions

Key Technical Specifications

Specifications	Dimensions											Installation dimensions
In	A	B	N	P	R	U	V	W	X	Y	Y1	J	K
1000A/3	378	308	174	120	60	200	35	20	16.5	49		353	175
1000A/4	493	310	235	120	60	200	35	20	16.5	48		471	174
1250A/3	378	336	174	120	80	200	40	35	16	49		353	175
1250A/4	493	338	235	120	80	200	40	35	16	48		471	174
1600A/3	378	336	174	120	80	200	40	35	16	50		353	175
1600A/4	493	338	235	120	80	200	40	35	16	49		471	174
2000A/3	378	445	174	120	80	200	40	40	20	103	208.5	353	220
2000A/4	493	447	235	120	80	200	40	40	20	104	210	471	220
2500A/3	378	445	174	120	80	200	40	40	20	103	208.5	353	220
2500A/4	493	447	235	120	80	200	40	40	20	104	210	471	220
3150A/3	378	492	174	120	120	200	50	50	21	77	237	353	220
3150A/4	493	494	235	120	120	200	50	50	21	78	238	471	220
