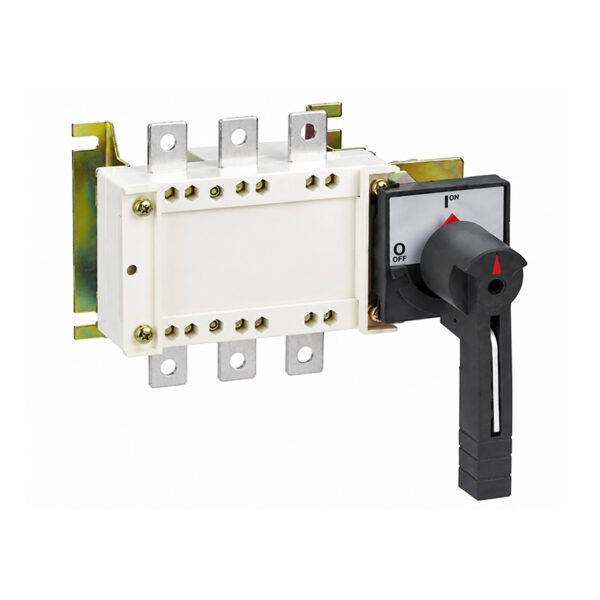

HGL(ETGL) / C series Side operation

Product Overview

• The HGL(ETGL)-125A-3150A/C is suitable for closing and opening circuits or for electrical isolation. It is available in three-pole and four-pole (three-pole plus a switchable neutral pole) configurations; models rated at 1000A and above are suitable for electrical isolation only.
• This series of switches can be supplied with a viewing window as required, allowing direct observation of the contact status.

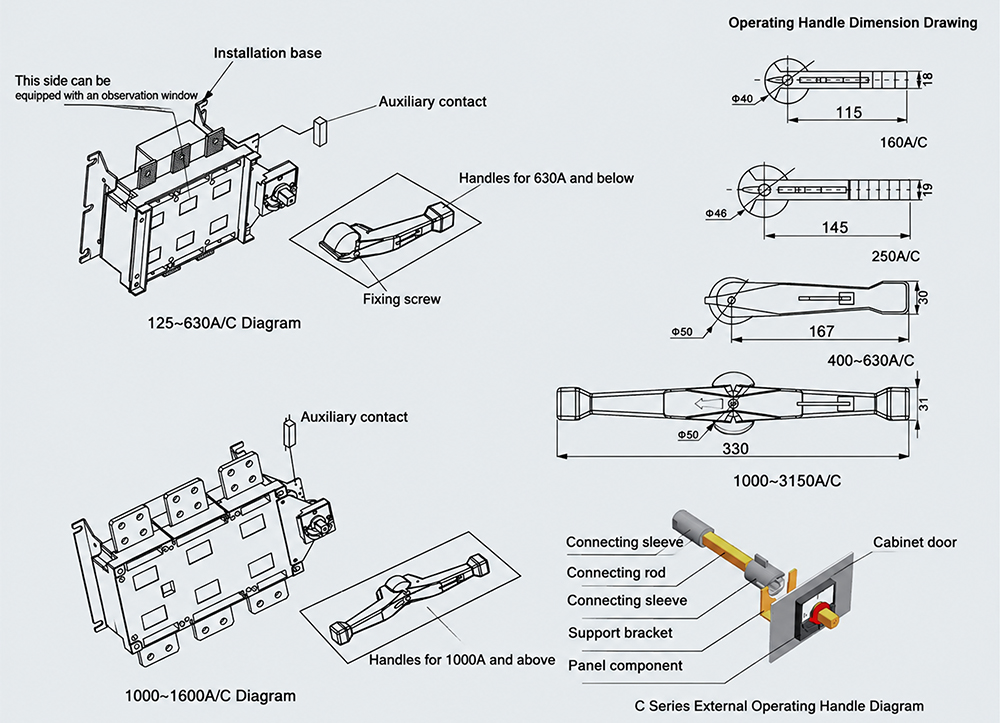

• Operating Methods

Direct operation: the handle is mounted on the right-hand side of the switch External operation: the handle is mounted on the outside of the switchboard door (C denotes side operation; CK denotes side operation with a viewing window)

• Two sets of auxiliary contacts may be fitted as required
• A linkage is used for external operation
• The electrical and mechanical performance specifications correspond to those of the HGL(ETGL)-125A-3150A series.

Outline and installation Dimensions(mm)

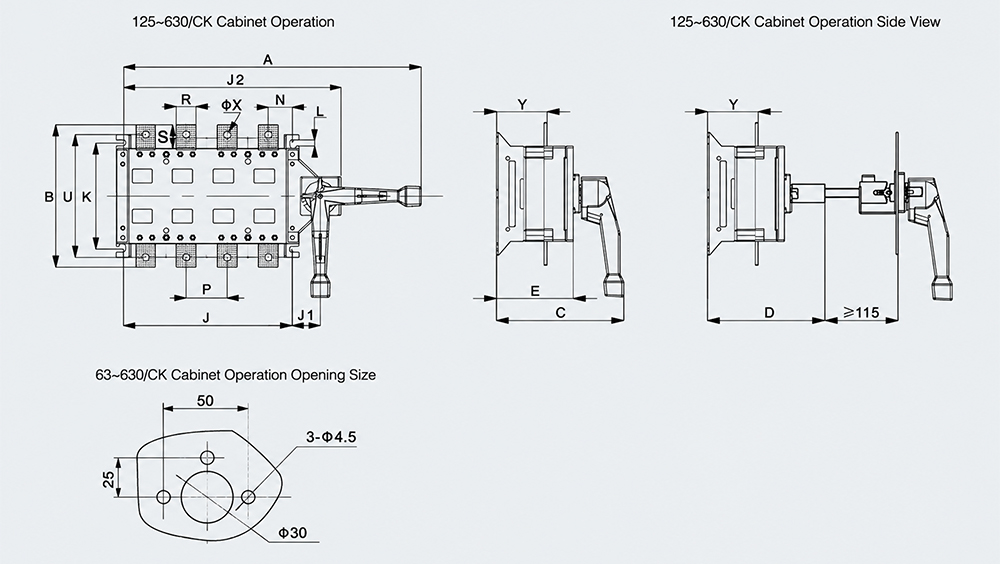

HGL(ETGL)-125-630/C:Side-operated Outline and Installation Dimensions(mm)

Key Technical Specifications

Specifications	Dimensions														Installation dimensions
In	A	B	C	D	E	J1	J2	N	P	R	S	U	ΦX	Y	J	K	L
125A/3	273	135	147	156	83	29	195	28	36	20	25	115	9	55	120	95	7
125A/4	303	135	147	156	83	29	225	22	36	20	25	115	9	55	150	95	7
160A/3	273	135	147	156	83	29	195	28	36	20	25	115	9	55	120	95	7
160A/4	303	135	147	156	83	29	225	22	36	20	25	115	9	55	150	95	7
200A/3	345	170	167	166	95	30	235	33	50	25	30	140	11	64	160	116	9
200A/4	395	170	167	166	95	30	285	33	50	25	30	140	11	64	210	116	9
250A/3	345	170	167	166	95	30	235	33	50	25	30	140	11	64	160	116	9
250A/4	395	170	167	166	95	30	285	33	50	25	30	140	11	64	210	116	9
315A/3	436	240	213	197	129	45	298	42	50	32	40	206	11	84	210	179	9.5
315A/4	496	240	213	197	129	45	358	38	50	32	40	206	11	84	270	179	9.5
400A/3	436	240	213	197	129	45	298	42	65	32	40	206	11	84	210	179	9.5
400A/4	496	240	213	197	129	45	358	38	65	32	40	206	11	84	270	179	9.5
500A/3	436	260	213	197	129	45	298	42	65	40	50	220	13	84	210	179	9.5
500A/4	496	260	213	197	129	45	358	38	65	40	50	220	13	84	270	179	9.5
630A/3	436	260	213	197	129	45	298	42	65	40	50	220	13	84	210	179	9.5
630A/4	496	260	213	197	129	45	358	38	65	40	50	220	13	84	270	179	9.5

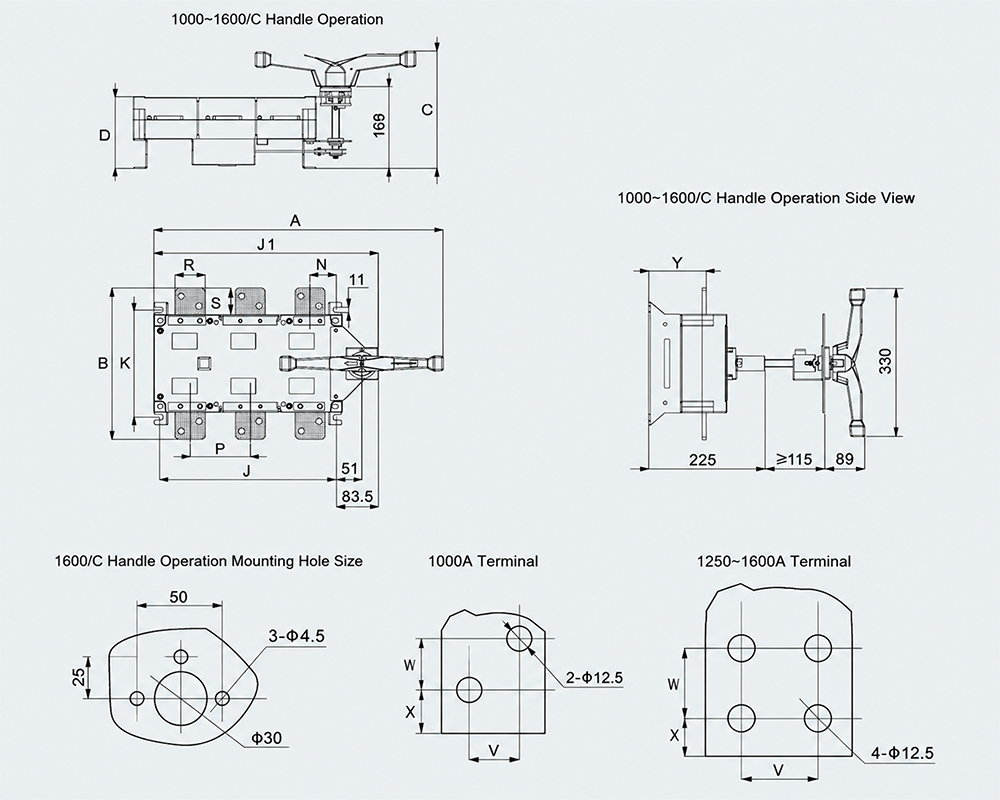

HGL(ETGL)-1000-1600/C:Side-operated Outline and Installation Dimensions(mm)

Key Technical Specifications

Specifications	Dimensions													Installation dimensions
In	A	B	C	D	J1	N	P	R	S	V	W	X	Y	J	K
1000A/3	582	308	242	150	450	53.5	120	60	55	35	20	16.5	109	353	220
1000A/4	697	310	242	150	565	50.5	120	60	55	35	20	16.5	110	471	220
1250A/3	582	336	242	150	450	53.5	120	80	68	40	35	16	109	353	220
1250A/4	697	338	242	150	565	50.5	120	80	68	40	35	16	110	471	220
1600A/3	582	336	242	150	450	53.5	120	80	68	40	35	16	110	353	220
1600A/4	697	338	242	150	565	50.5	120	80	68	40	35	16	111	471	220

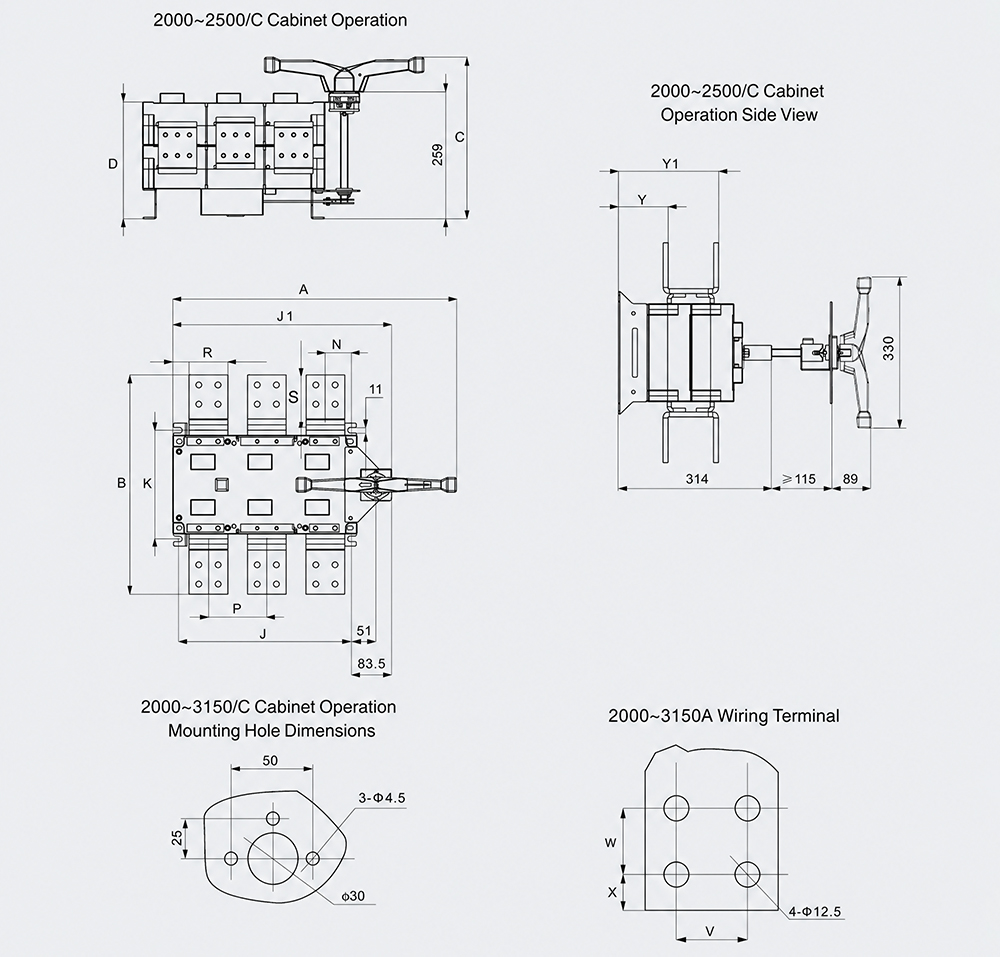

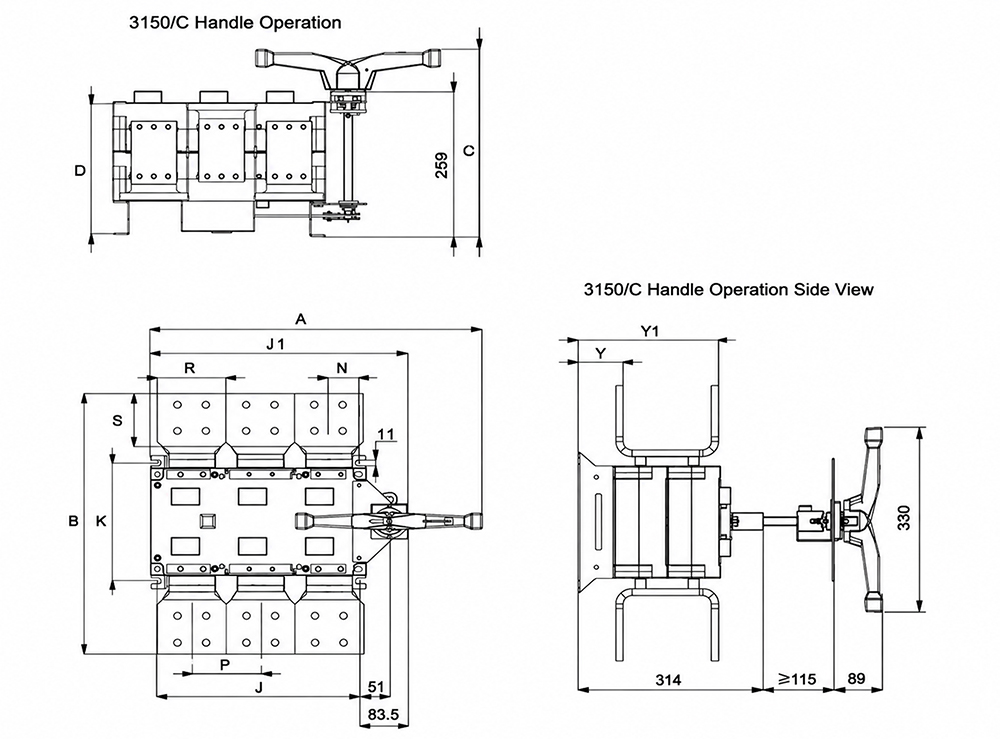

HGL(ETGL)-1000-1600/C:Side-access Operation- External Outline and Installation Dimensions(mm)

Key Technical Specifications

Specifications	Dimensions														Installation dimensions
In	A	B	C	D	J1	N	P	R	S	V	W	X	Y	Y1	J	K
2000A/3	582	445	330	239	450	53.5	120	80	90	40	40	20	102	207.5	353	220
2000A/4	697	447	330	239	565	50.5	120	80	90	40	40	20	103	208.5	471	220
2500A/3	582	445	330	239	450	53.5	120	80	90	40	40	20	102	207.5	353	220
2500A/4	697	447	330	239	565	50.5	120	80	90	40	40	20	103	208.5	471	220
3150A/3	582	492	330	239	450	53.5	120	120	101	50	50	21	75.5	235.5	353	220
3150A/4	697	494	330	239	565	50.5	120	120	101	50	50	21	76.5	236.5	471	220
