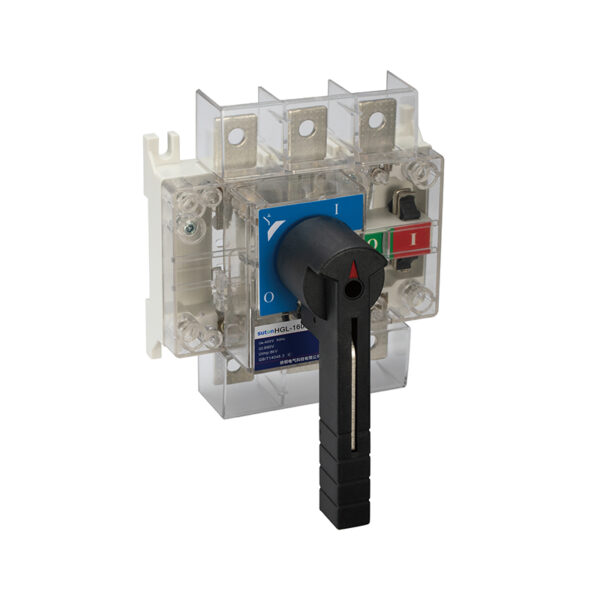

HGL(ETGL)/TM series Transparent type

Product overview

• The HGL(ETGL)-160A~630A/TM is designed for use with 50 Hz alternating current, a rated voltage of 400V and a rated current of up to 630 A.
• It is used for the occasional switching on and off of electrical appliances, as well as for isolating circuits.

Control method

Direct control: the handle is located on the switch.
Control from outside the cabinet: the handle is mounted on the outside of the
distribution cabinet door.

• A transparent top cover and a small cover allow direct observation of the internal structure and the closed/open status of the contacts.
• Three-pole and four-pole versions are available (three-pole + option to switch the neutral on/off).
• The extended shaft is designed for operation from outside the switchboard.
• The electrical and mechanical characteristics correspond to those of the DNH8(HGL)-160A~630A model.

Outline and installation Dimensions(mm)

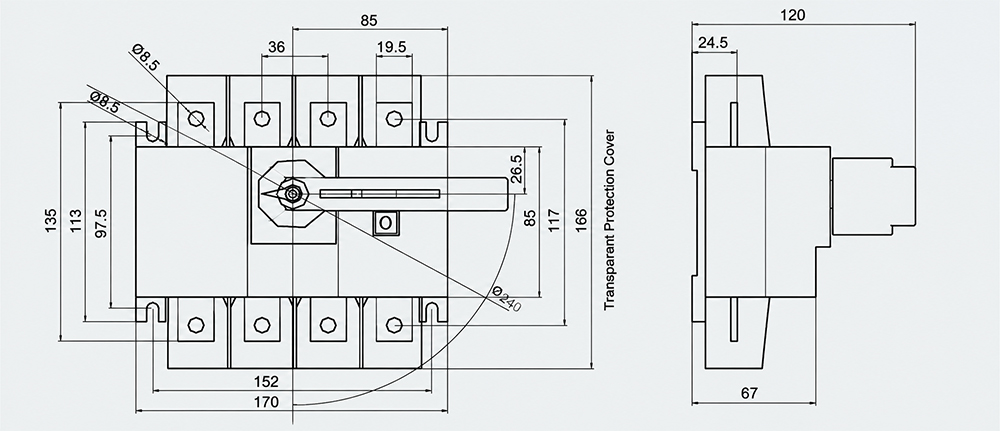

HGL-160A/4TM

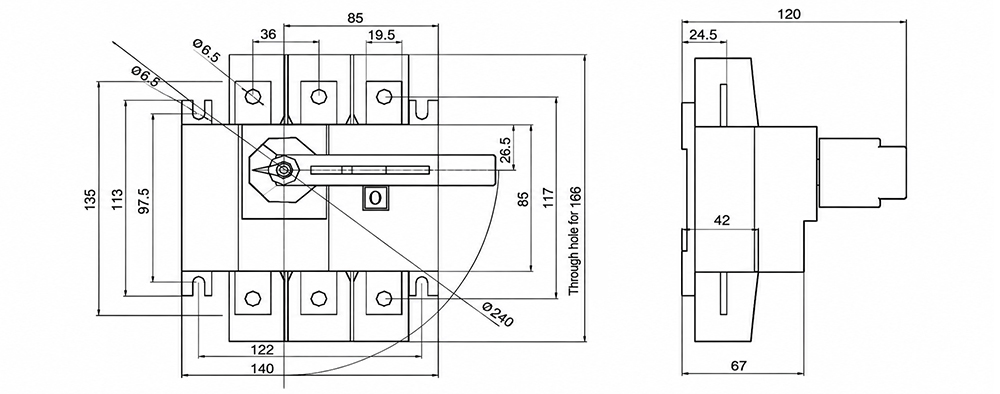

HGL(ETGL)-160A/3TM

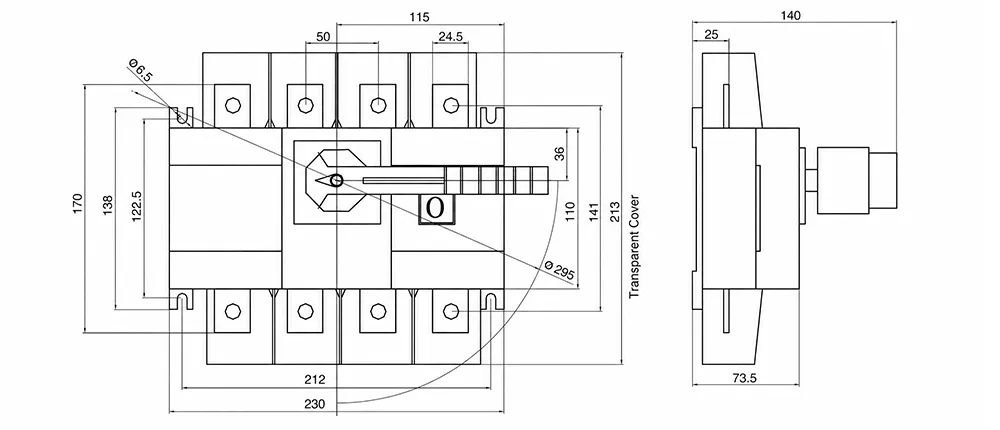

HGL(ETGL)-250A/4TM

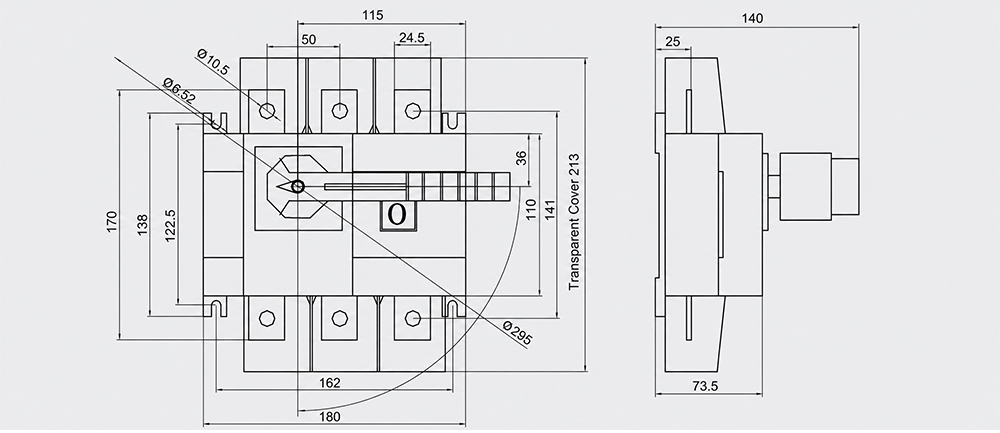

HGL(ETGL)-250A3TM

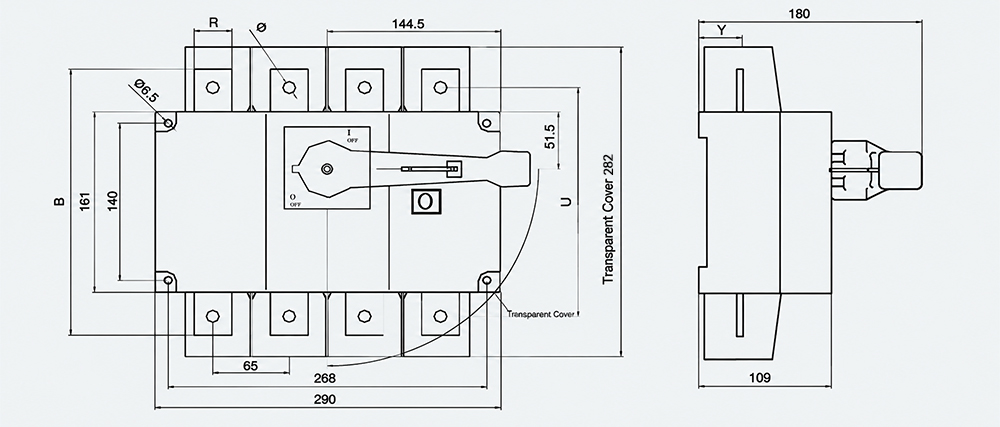

HGL(ETGL)-400~630A/4TM

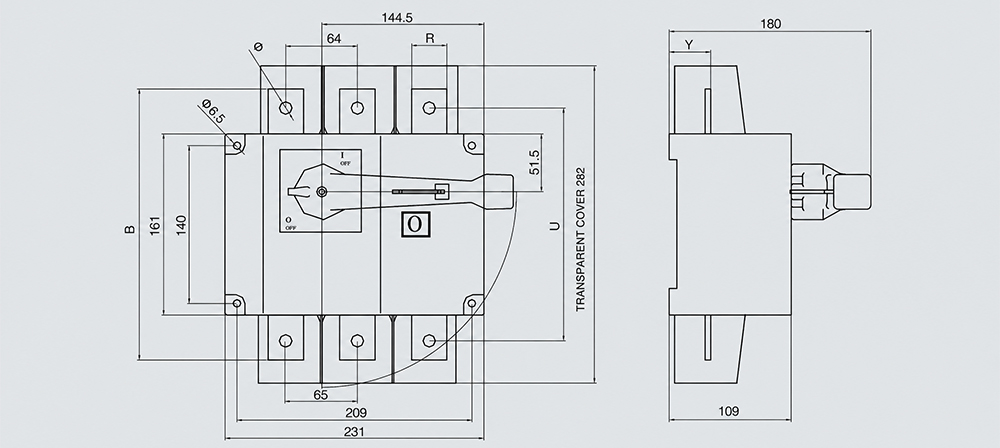

HGL(ETGL)-400~630A/3TM

Keytechnical specifications

Specifications	Dimensions
In	B	U	R	Y	Φ
400A	241	207	31.5	37	11
630A	260	220	40	37.5	13
