HGL(ETGL)/H series Operations behind the cabinet

Product Overview

• The HGL(ETGL)/H160A-1600A is suitable for circuits and for making, breakingor electrically isolating circuits; models with a rated current of 1,000 A or aboveare suitable for electricalisolation only.
• Models ranging from 160 A to 1,600 A are available in three-pole and four-poleconfigurations (three poles plus a switchable neutral pole).
• For ratings of 1600A and below, products with an observation window areavailable on request, allowing direct visual inspection of the contact make/break status.
• Two sets of auxiliary contacts may be fitted as required.
• The electrical and mechanical performance specifications correspond to thoseof the HGL-16w0A-1600A.

Note: This product is available for external operation only.
Order code: HGL(ETGL)/H-630/3JH
If a viewing window is required, the order code is: HGL(ETGL)/H-630/3JkH

Outline andinstallation Dimensions（mm）

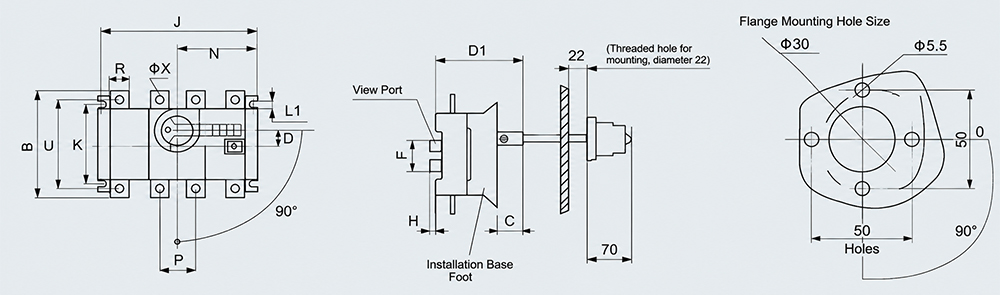

HGL(ETGL)-125~1600/JKH Operations behind the cabinet

Key Technical Specifications

Specifications	Dimensions												Installation dimensions
In	A	B	C	D	D1	N	P	R	U	ΦX	F	H	J	K	L1
125A/3	140	135	17	15	93	75	36	20	115	9	50	10	120	95	7
125A/4	170	135	17	15	93	75	36	20	115	9	50	10	150	95	7
160A/3	140	135	17	15	93	75	36	20	115	9	50	10	120	95	7
160A/4	170	135	17	15	93	75	36	20	115	9	50	10	150	95	7
200A/3	180	170	18	20	104	105	50	25	140	11	79	15	160	115	9
200A/4	230	170	18	20	104	105	50	25	140	11	79	15	210	115	9
250A/3	180	170	18	20	104	105	50	25	140	11	79	15	160	115	9
250A/4	230	170	18	20	104	105	50	25	140	11	79	15	210	115	9
315A/3	230	240	20	30	137	135	65	32	206	11	95	20	210	135	11
315A/4	290	240	20	30	137	135	65	32	206	11	95	20	270	135	11
400A/3	230	240	20	30	137	135	65	32	206	11	95	20	210	135	11
400A/4	290	240	20	30	137	135	65	32	206	11	95	20	270	135	11
500A/3	230	260	20	30	137	135	65	40	220	13	95	20	210	135	11
500A/4	290	260	20	30	137	135	65	40	220	13	95	20	270	135	11
630A/3	230	260	20	30	137	135	65	40	220	13	95	20	210	135	11
630A/4	290	260	20	30	137	135	65	40	220	13	95	20	270	135	11

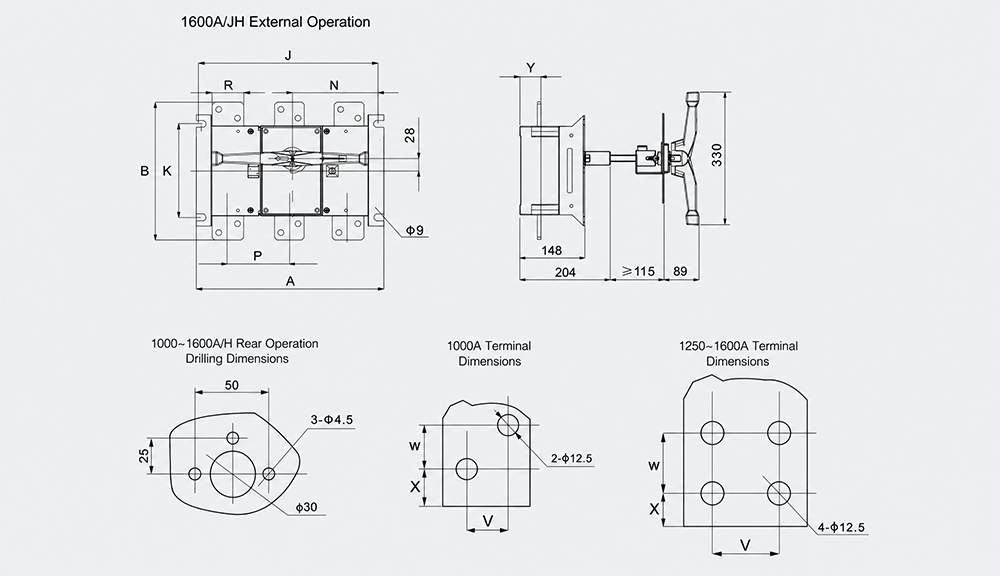

HGL(ETGL)-1600A/H Operations behind cabinet

Key Technical Specifications

Specifications	Dimensions									Installation dimensions
In	A	B	N	P	R	V	W	X	Y	J	K
1000A/3	378	308	174	120	60	35	20	16.5	49	350	220
1000A/4	493	310	235	120	60	35	20	16.5	48	471	220
1250A/3	378	336	174	120	80	40	35	16	49	350	220
1250A/4	493	338	235	120	80	40	35	16	48	471	220
1600A/3	378	336	174	120	80	40	35	16	50	350	220
1600A/4	493	338	235	120	80	40	35	16	49	471	220
